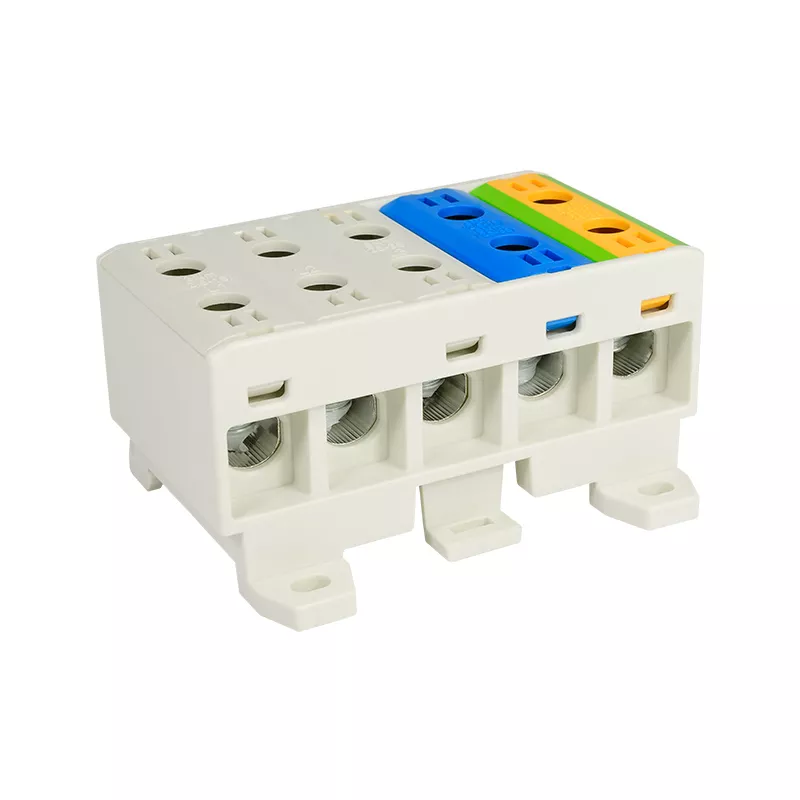

Złączka przelotowa WLZ35/5x35/sssnz 3x szary, niebieski, zielony
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 48.35535 |
| GTIN(EAN) | 5901769019409 |
| Price unit | piece |
| Catalog price | 36,89 zł (29,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk pięciotorowy z wysokiej jakości osłoną , wykonaną z uniepalnionego tworzywa PA6 GF25. Wkłady wykonane z Aluminium cynowanego. Zacisk przygotowany do montażu na szynie TH35 lub bezpośrednio do powierzchni płaskich przy pomocy wkrętów z niskimi łbami. Do montażu niezbędne są klucze sześciokątne (imbusy).Zacisk występuje w trzech kolorach: szarym L1 L2 L3 , niebieskim, oraz żółto-zielonym.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 112 g |
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 35 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 35 mm² |
| Connectable conductor cross section solid-core: | 2.5 - 35 mm² |
| Connectable conductor cross section multi-wired: | 2.5 - 35 mm² |
| Rated current In: | 120 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of levels: | 5 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Width: | 64.5 mm |
| Height: | 79.5 mm |
| Depth: | 40 mm |
| Colour: | Multi-coloured |
| Suitable for conductor material: | Aluminium/copper |
