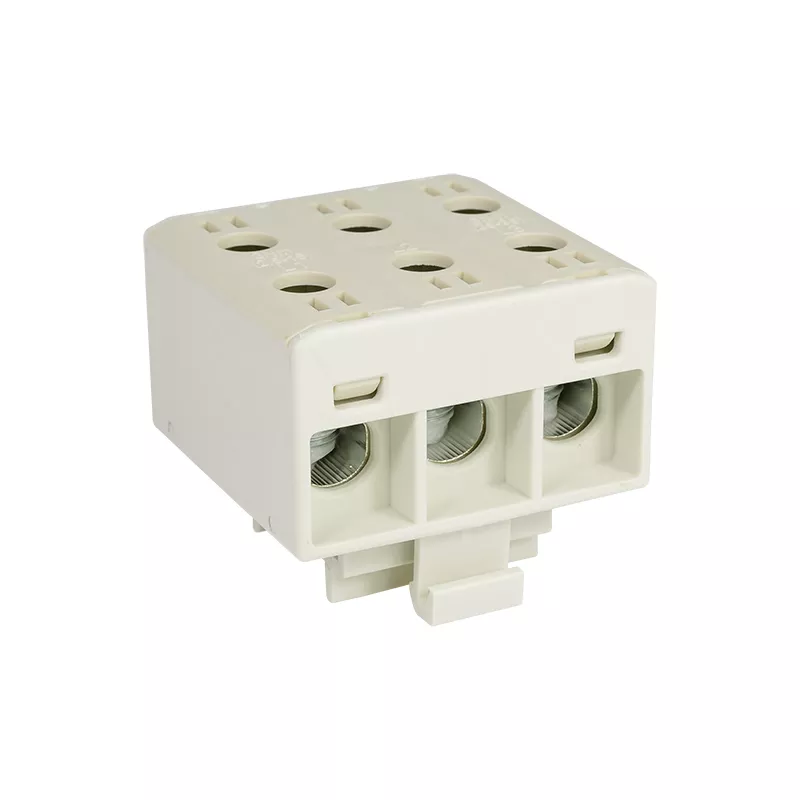

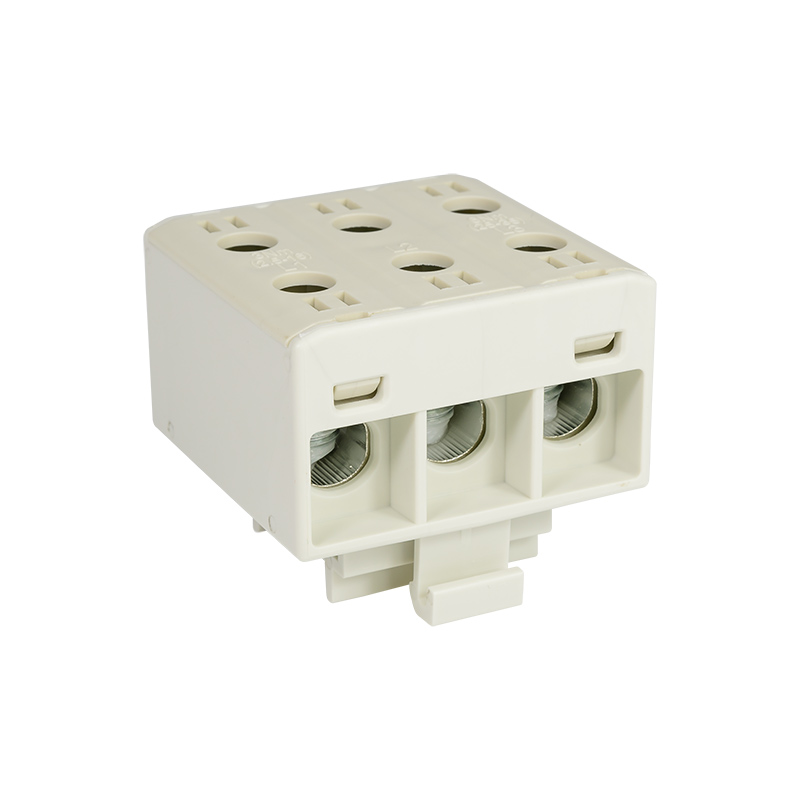

Złączka przelotowa WLZ35/3x35/s szara
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 48.336 |
GTIN(EAN) | 5901769019256 |
Price unit | piece |
Catalog price | 17,22 zł (14,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski trójtorowe/rozdzielne z wysokiej jakości osłoną , wykonaną z uniepalnionego tworzywa PA6 GF25. Wkłady
wykonane z Aluminium cynowanego. Zaciski przygotowane do montażu na szynach TH35 lub bezpośrednio do powierzchni
płaskich przy pomocy wkrętów z niskimi łbami. Do montażu niezbędne są klucze sześciokątne (imbusy). Każda złączka
występuje w trzech kolorach: niebieskim, szarym oraz żółto-zielonym.
Additional features:
Information | Value |
---|---|
Net weight: | 64 g |
ETIM class: | Feed-through terminal block |
Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 35 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 2.5 - 35 mm² |
Connectable conductor cross section solid-core: | 2.5 - 35 mm² |
Connectable conductor cross section multi-wired: | 2.5 - 35 mm² |
Rated current In: | 120 A |
Rated voltage: | 690 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Number of levels: | 1 |
Number of clamp positions per level: | 6 |
Mounting method: | DIN rail (top hat rail) 35 mm |

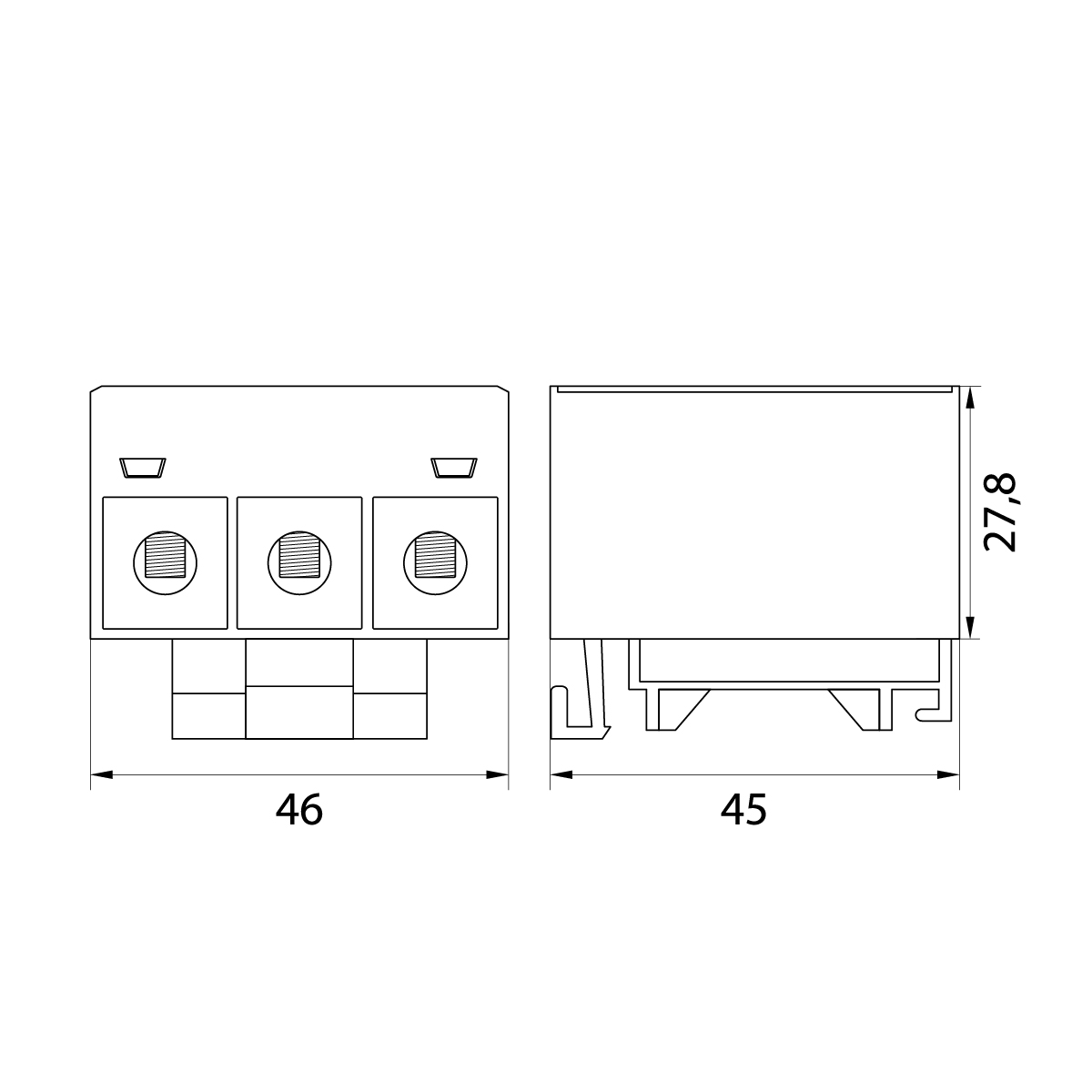

Width: | 45 mm |
Height: | 46 mm |
Depth: | 28 mm |
Colour: | Grey |
Suitable for conductor material: | Aluminium/copper |
