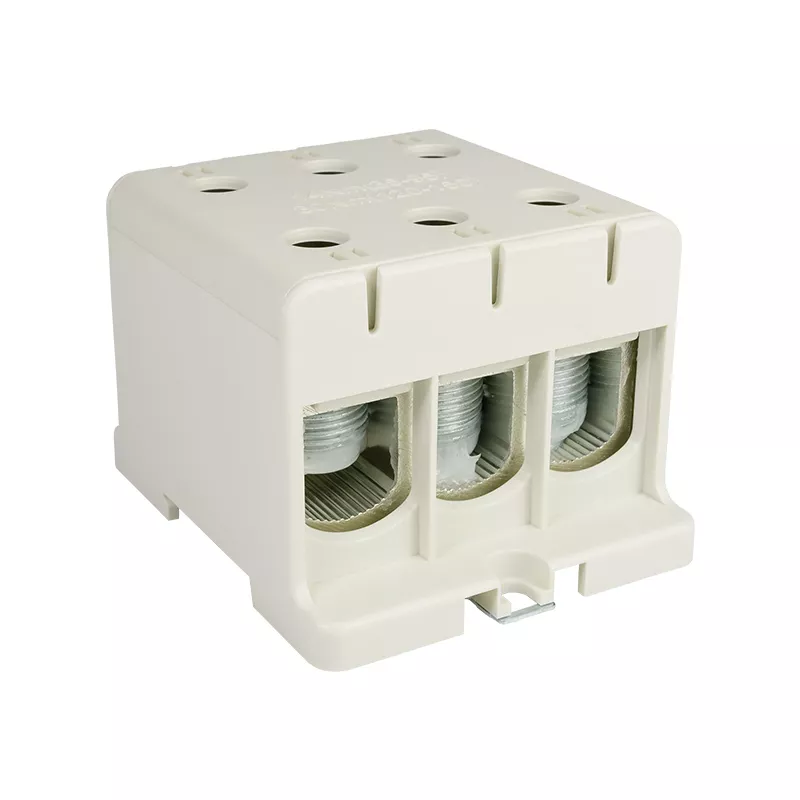

Złączka przelotowa WLZ35/3x150/s szara
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 48.3151 |
| GTIN(EAN) | 5901769019348 |
| Price unit | piece |
| Catalog price | 77,49 zł (63,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski trójtorowe z wysokiej jakości osłoną , wykonaną z uniepalnionego tworzywa PA6 GF25. Wkłady wykonane z Aluminium cynowanego. Zaciski przygotowane do montażu na szynach TH35 lub bezpośrednio do powierzchni płaskich przy pomocy wkrętów z niskimi łbami. Do montażu niezbędne są klucze sześciokątne (imbusy). Każdy zacisk występuje w trzech kolorach: niebieskim, szarym oraz żółto-zielonym.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 424 g |
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 25 - 150 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 25 - 150 mm² |
| Connectable conductor cross section solid-core: | 25 - 150 mm² |
| Connectable conductor cross section multi-wired: | 25 - 150 mm² |
| Rated current In: | 290 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of levels: | 1 |
| Number of clamp positions per level: | 6 |
| Mounting method: | DIN rail (top hat rail) 35 mm |

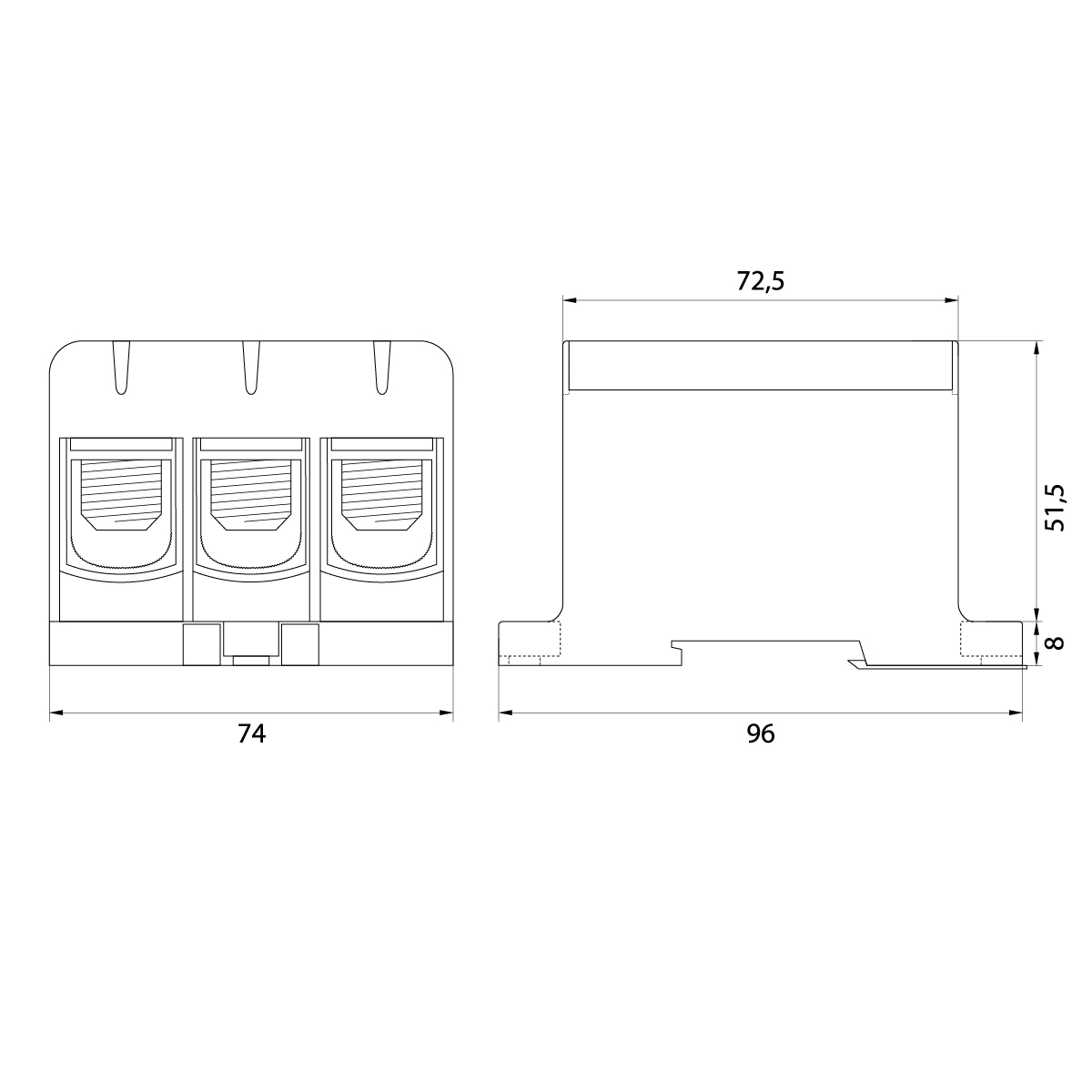

| Width: | 96 mm |
| Height: | 74 mm |
| Depth: | 51.5 mm |
| Colour: | Grey |
| Suitable for conductor material: | Aluminium/copper |
