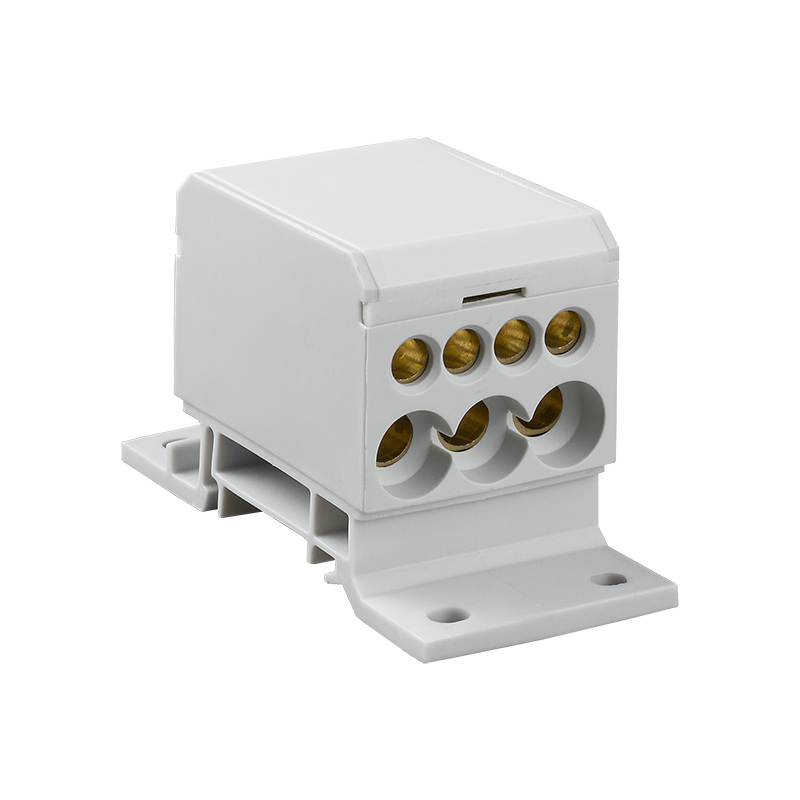

Blok rozdzielczy DB1-S szary
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 48.14 |
| GTIN(EAN) | 5901769011410 |
| Price unit | piece |
| Catalog price | 71,22 zł (57,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Bloki do zastosowań w połączeniach elektrotechnicznych w rozdzielnicach niskiego napięcia. Elementy zaciskowe gwintowane. Zakończenie przewodów nieobrobione lub przewody giętkie zakończone tulejką. Locks for use in electrical connections in the low voltage distribution boxes. Clamping threaded elements. Ends of cable unworked , or flexible wires with sleeve at the ends.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 230 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 1 |
| Connection type: | Screwing |
| Mounting method: | DIN-rail/screw |
| Contact safe: | yes |

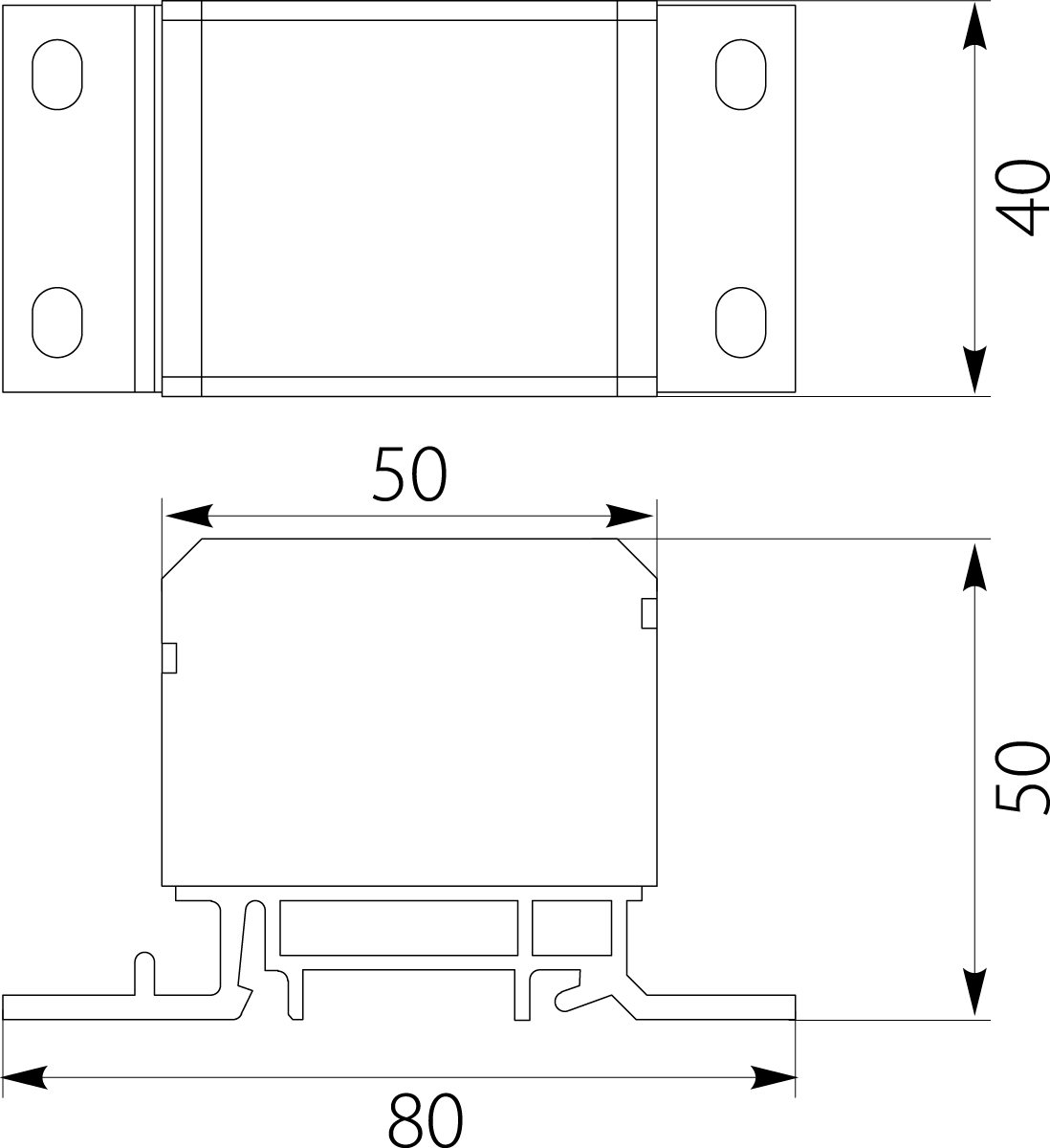

| Height: | 50 mm |
| Width: | 40 mm |
| Depth: | 80 mm |
| Nominal current: | 160 A |

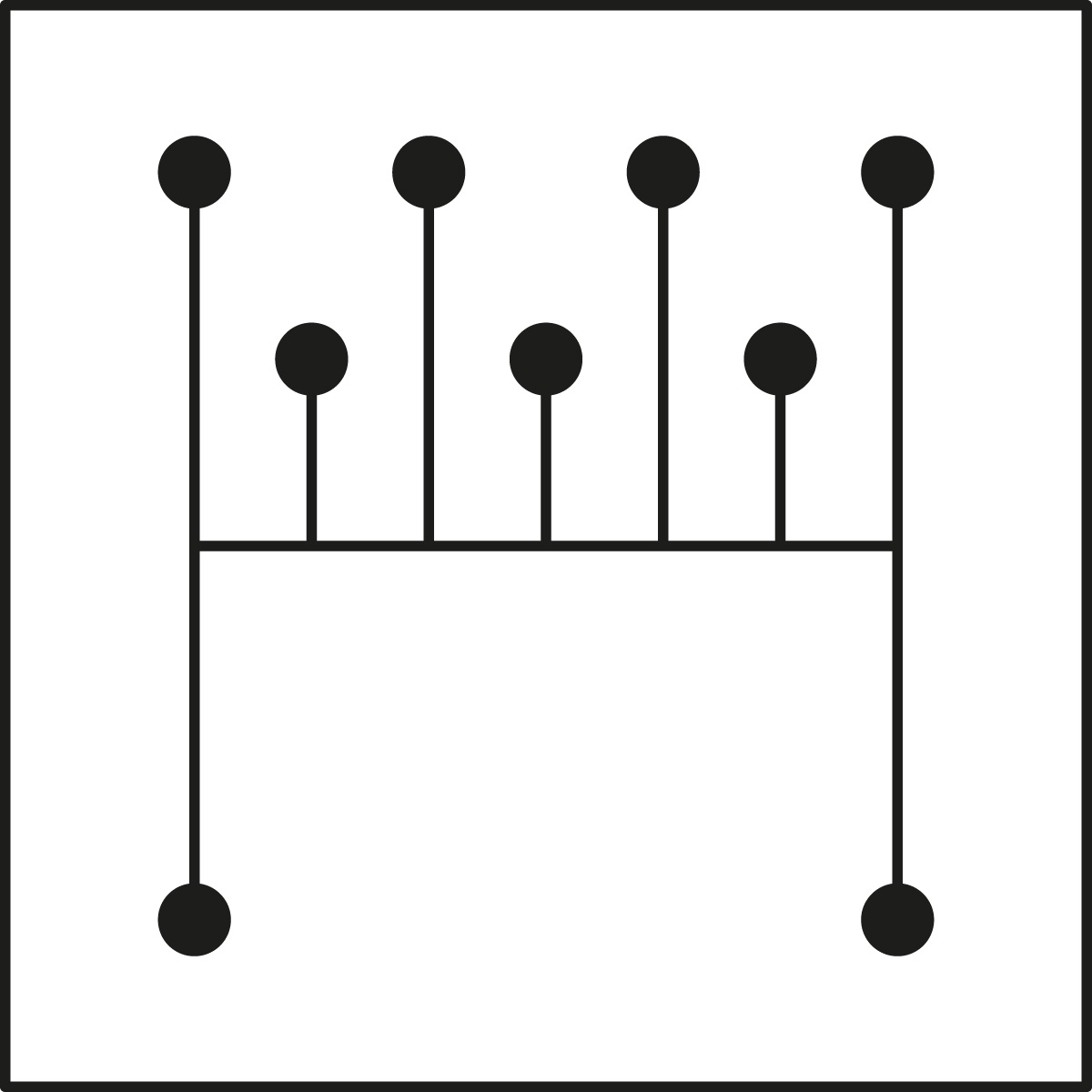

| Number of inputs: | 2 |
| Number of outputs: | 7 |
| Suitable for solid conductors: | yes |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | no |
| Suitable for extra fine-strand conductors: | yes |
| Suitable for extra fine-strand conductors without cable end sleeve: | no |
| Conductor cross section, input: | 4 - 50 mm² |
| Conductor cross section, output: | 2.5 - 50 mm² |
