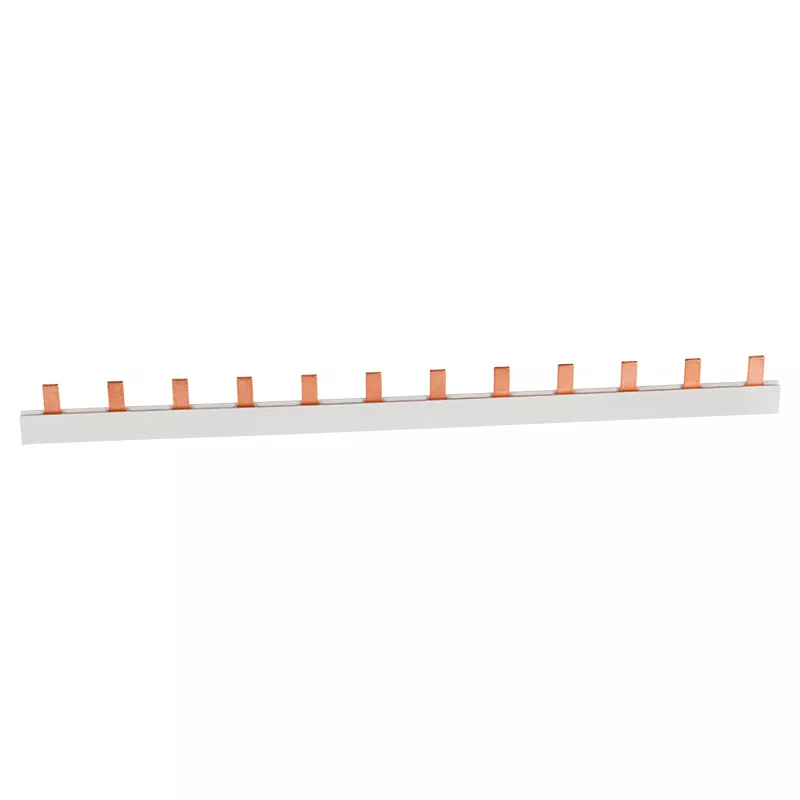

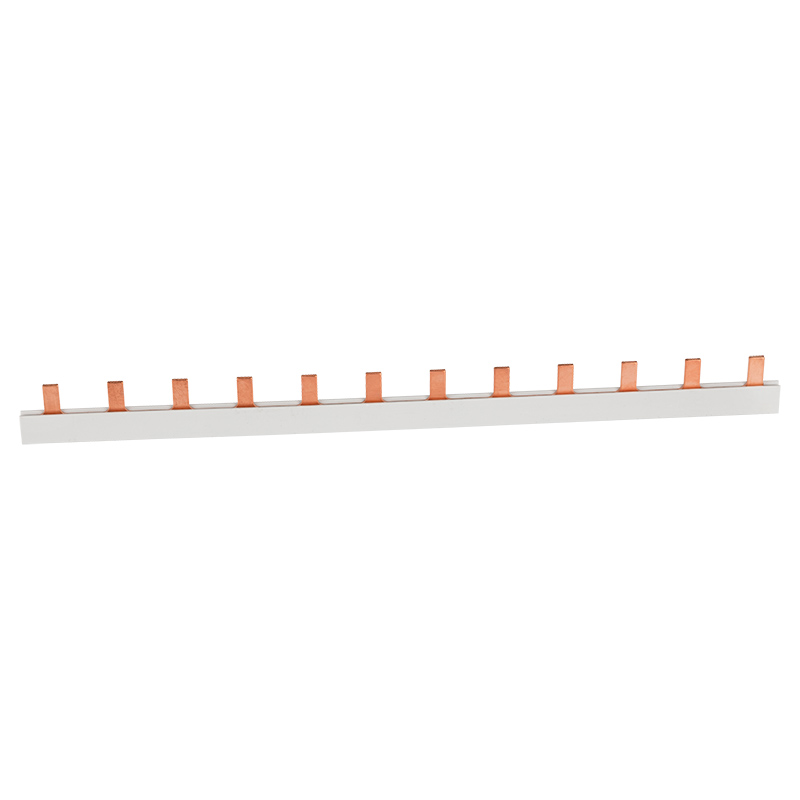

Szyna prądowa S12 1F-16SZ typu PIN szara
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 45.236 |
GTIN(EAN) | 5901769013575 |
Price unit | piece |
Catalog price | 17,33 zł (14,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 40 g |
ETIM class: | Phase busbar |
Number of phases: | 1 |
Number of poles: | 1 |
Suitable for number of devices: | 12 |
Cross section: | 16 mm² |
Width in number of modular spacings: | 12 |
Rated permanent current Iu: | 80 A |
Type of electric connection: | Pin |
Insulated: | yes |
Rated surge voltage: | 2.5 kV |
Conditioned rated short-circuit current Iq: | 0 kA |
Max. rated operation voltage Ue: | 400 V |
Rated short-time withstand current lcw: | 0.08 kA |
Suitable for devices with N-conductor: | no |
Suitable for devices with auxiliary switch: | no |
