Szyna prądowa S12 3F -10 szara
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 45.122 |
GTIN(EAN) | 5901769010604 |
Price unit | piece |
Catalog price | 27,16 zł (22,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

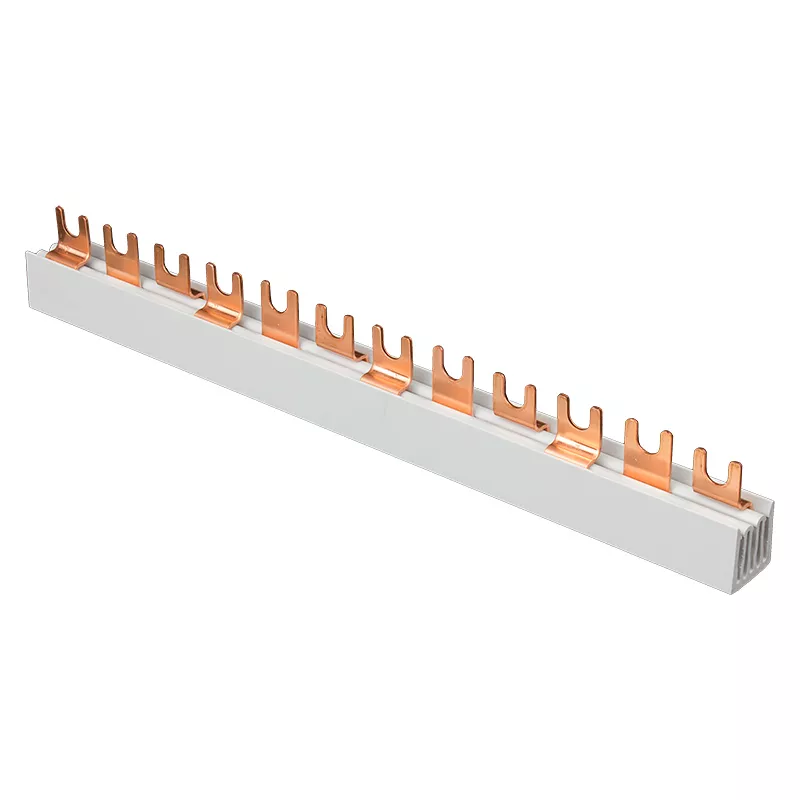

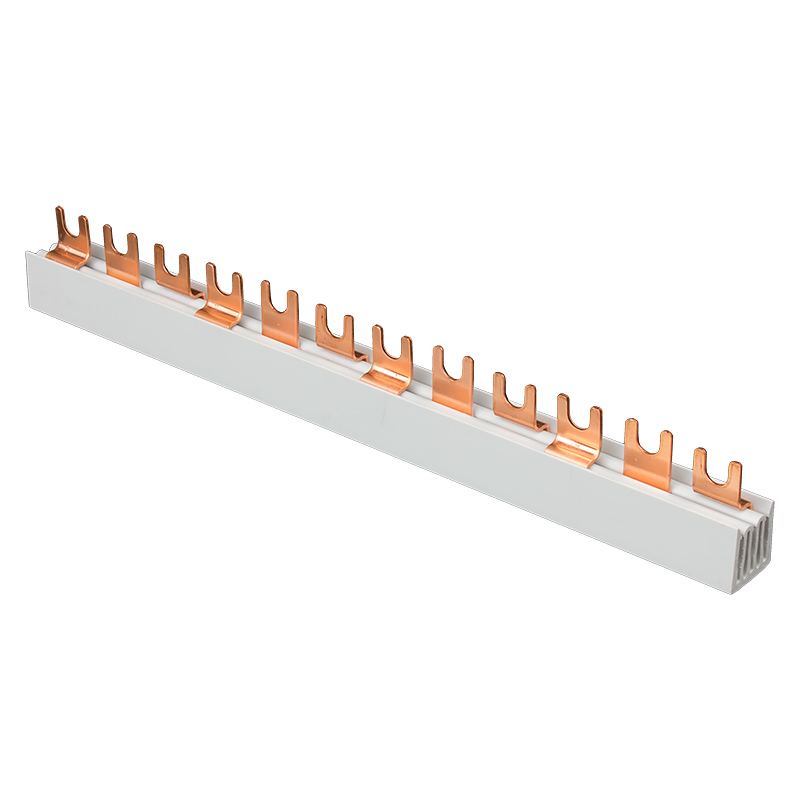

Szyny prądowe jedno i trójtorowe Wygodne do montażu izolowane miedziane szyny prądowe przystosowane są do łączenia wyłączników i aparatów elektrycznych typu "S".
Additional features:
Information | Value |
---|---|
Net weight: | 106 g |
ETIM class: | Phase busbar |
Number of phases: | 3 |
Number of poles: | 3 |
Suitable for number of devices: | 12 |

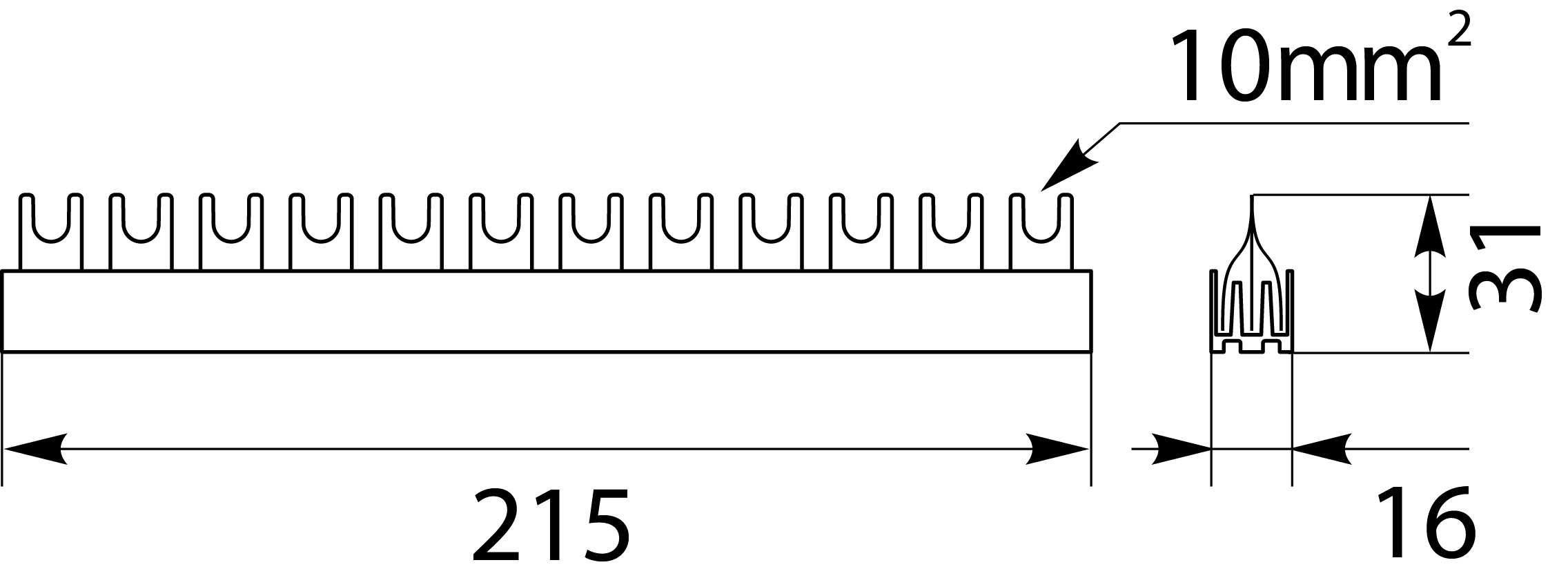

Module width: | 17.8 mm |
Cross section: | 10 mm² |
Length: | 215 mm |
Width in number of modular spacings: | 12 |
Rated permanent current Iu: | 63 A |
Type of electric connection: | Fork |
Insulated: | yes |
Rated surge voltage: | 2.5 kV |
Max. rated operation voltage Ue: | 400 V |
Rated short-time withstand current lcw: | 0.063 kA |
Suitable for devices with N-conductor: | no |
Suitable for devices with auxiliary switch: | no |
