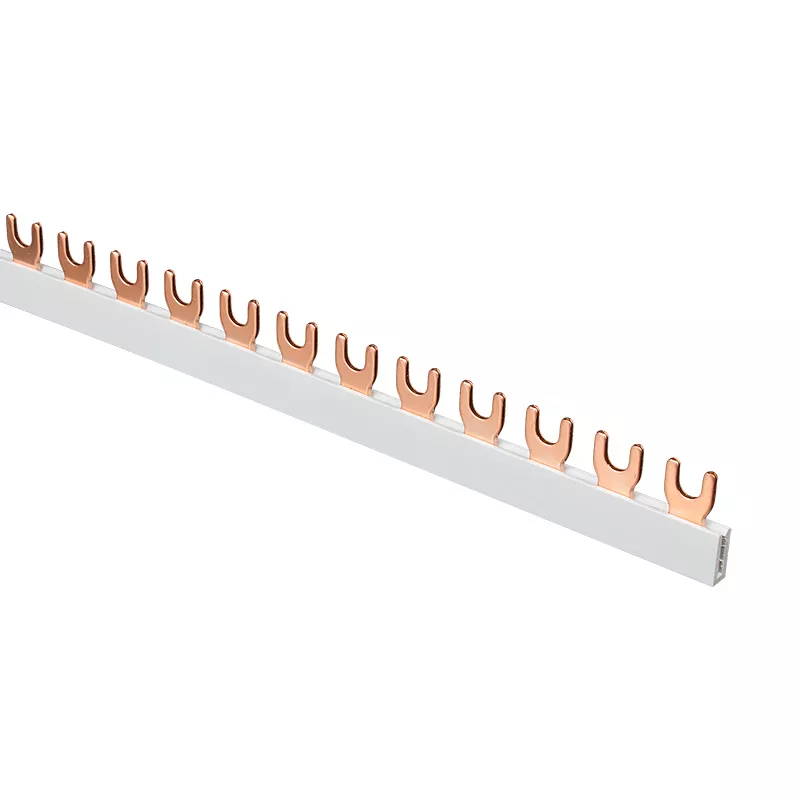

Szyna prądowa S54 1F -10 szara
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 45.110 |
| GTIN(EAN) | 5905548287317 |
| Price unit | piece |
| Catalog price | 54,65 zł (44,43 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Szyny prądowe jedno i trójtorowe Wygodne do montażu izolowane miedziane szyny prądowe przystosowane są do łączenia wyłączników i aparatów elektrycznych typu "S".
Additional features:
| Information | Value |
|---|---|
| Net weight: | 228 g |
| ETIM class: | Phase busbar |
| Number of phases: | 1 |
| Number of poles: | 1 |
| Suitable for number of devices: | 54 |
| Module width: | 17.8 mm |

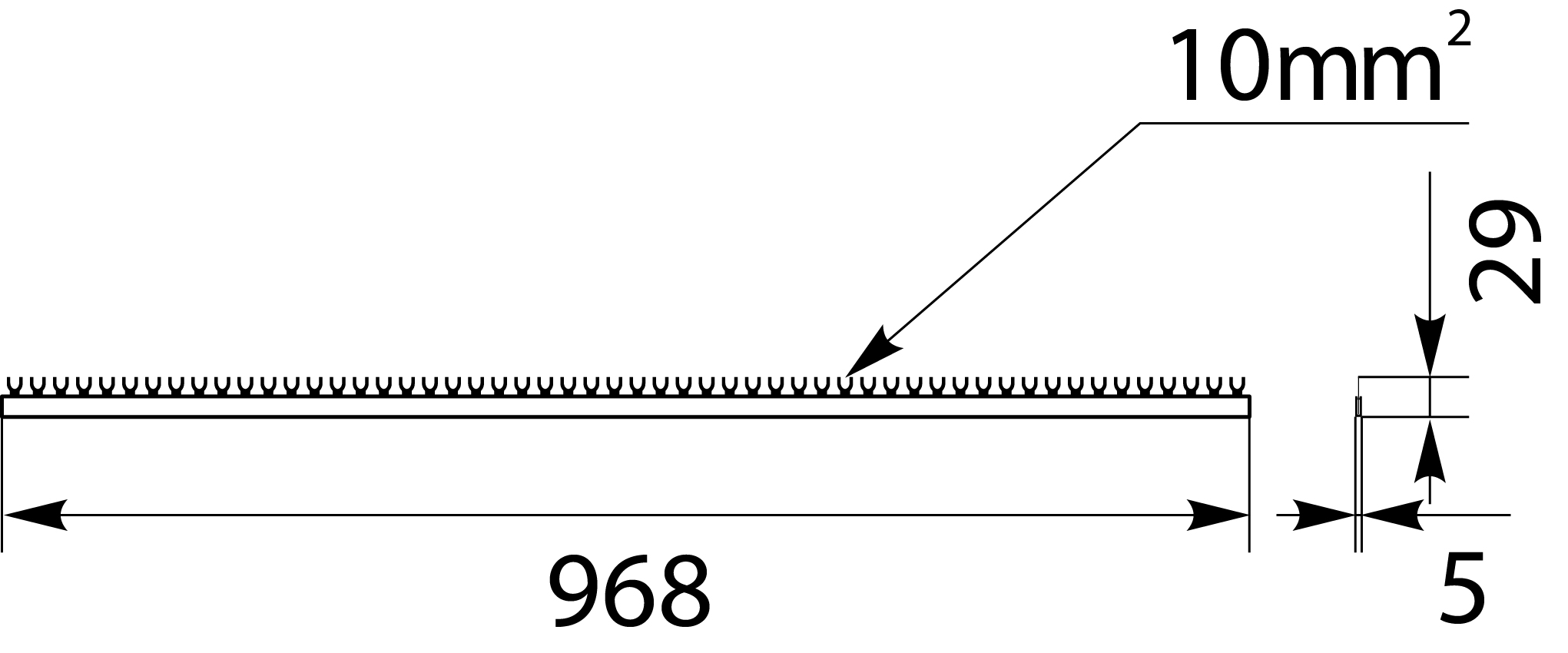

| Cross section: | 10 mm² |
| Length: | 968 mm |
| Width in number of modular spacings: | 54 |
| Rated permanent current Iu: | 63 A |
| Type of electric connection: | Fork |
| Insulated: | yes |
| Rated surge voltage: | 2.5 kV |
| Max. rated operation voltage Ue: | 400 V |
| Rated short-time withstand current lcw: | 0.063 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
