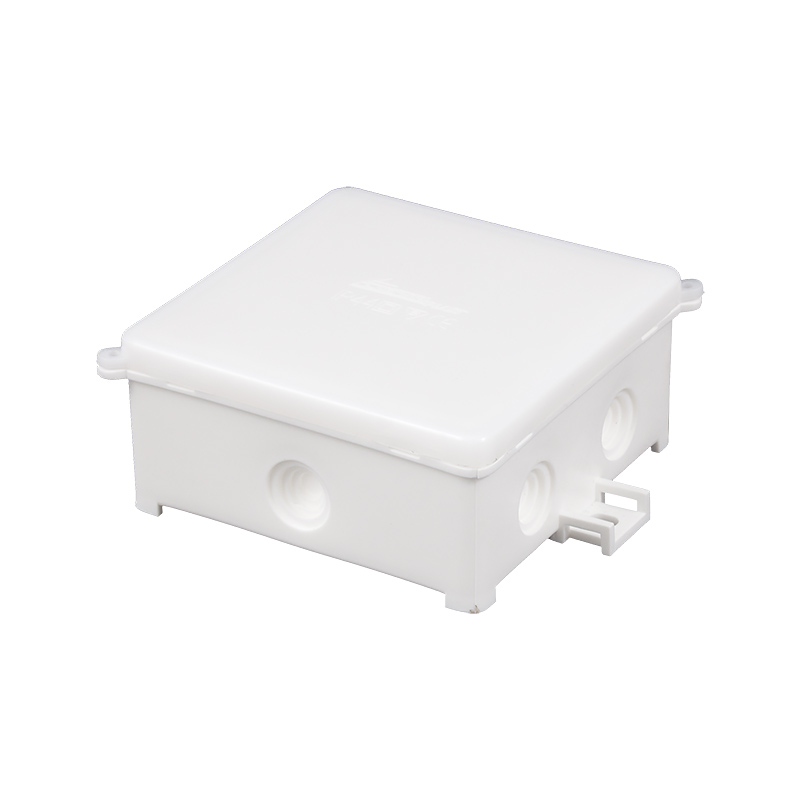

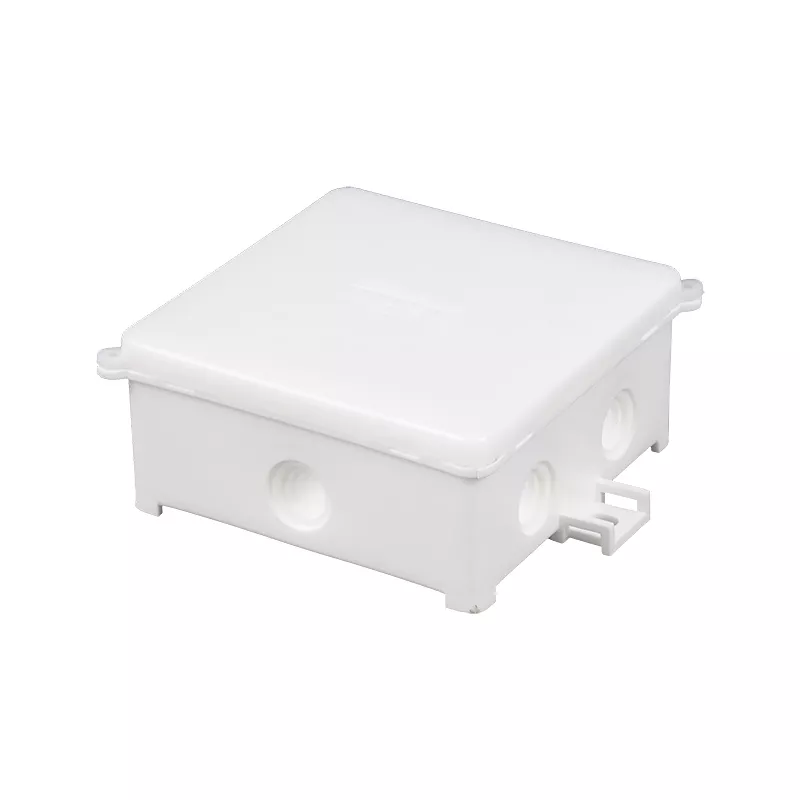

PIN 80/B puszka instalacyjna natynk biała
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 31.80 |
| GTIN(EAN) | 5905548283722 |
| Price unit | piece |
| Catalog price | 4,29 zł (3,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszki instalacyjne PO wyposażone są w dławiki elastyczne PE, istnieje możliwość zamontowania skręcanych dławnic PG. Puszki instalacyjne PIN wyposażone są w stałe przepusty umiejscowione w bocznych ścianach puszek z wewnętrznym stopniowaniem, które można przyciąć w zależności od średnicy przewodu. Najczęściej puszki PO, PIN wykorzystywane są w instalacjach jednofazowych, zastosowano w nich zaciskową pokrywę wielokrotnego użycia, umożliwiającą szybki i wygodny sposób otwierania i zamykania puszki. Ochronę przed wilgocią zapewnia stopień ochrony IP44.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 60 g |
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 4 mm² |
| Equipped with: | None |
| Shape: | Square |
| Mounting method: | Wall-/ceiling mounting |
| Mounting in the soil: | no |
| Mounting under water: | no |
| For tube diameter: | 16/19 mm |
| Inlet from the rear: | no |

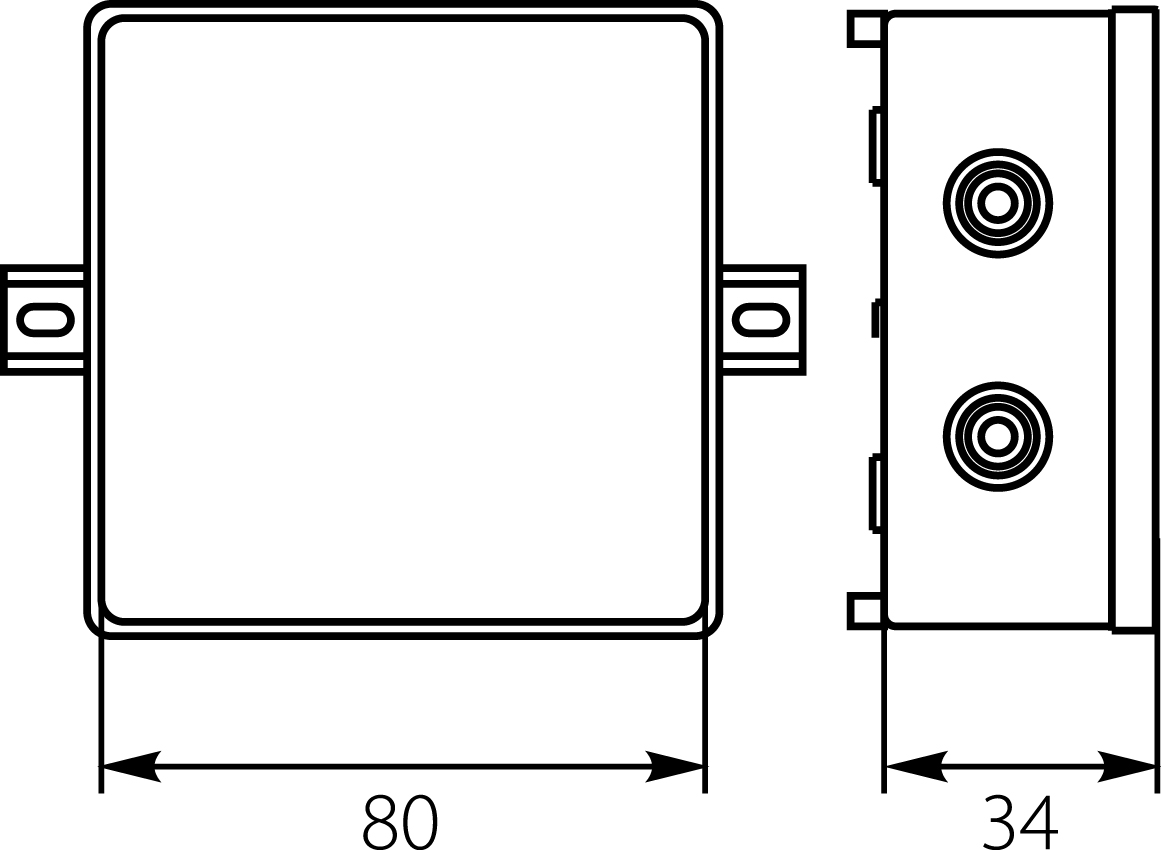

| Length: | 80 mm |
| Width: | 80 mm |
| Depth: | 34 mm |
| Diameter: | 0 mm |
| Tackable: | no |
| Number of inlets: | 6 |
| Type of housing feed-through: | Seal membrane |
| Material: | Plastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Colour: | White |
| Degree of protection (IP): | IP44 |
| Degree of protection (NEMA): | 2 |
| Cover model: | Blind cover |
| Transparent cover: | no |
| Cover attachment: | Snapped on |
| Castable: | no |
| With casting compound: | no |
| Sealable: | yes |
| Rated insulation voltage Ui: | 500 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | no |
| Operating temperature: | -25 - 60 °C |
| Explosion-tested version: | no |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
