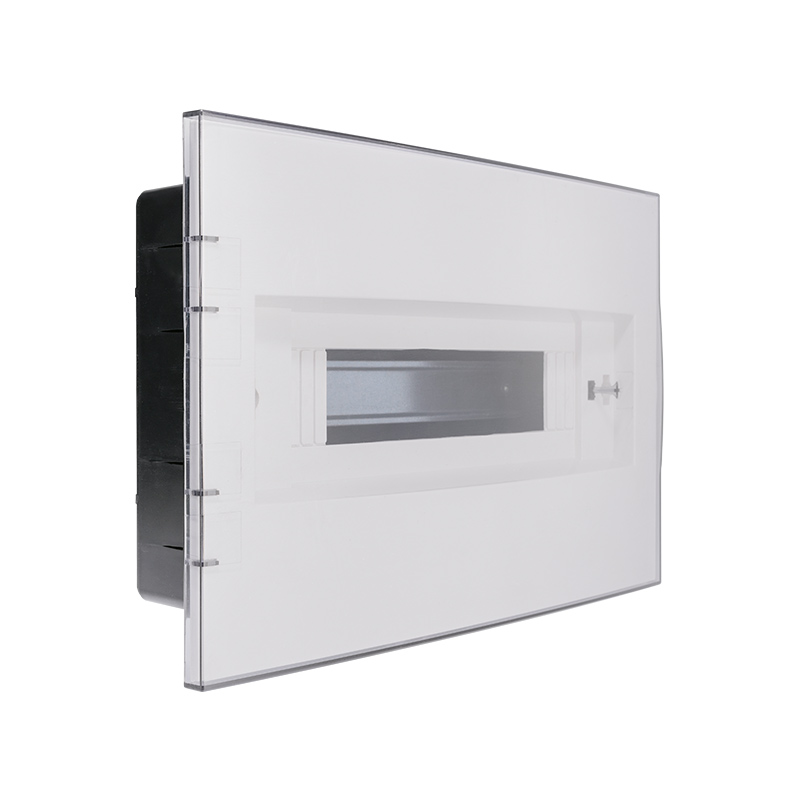

Rozdzielnica Podtynkowa KRP-12 biały, transparentny
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 24.212 |
| GTIN(EAN) | 5901769019577 |
| Price unit | piece |
| Catalog price | 71,33 zł (57,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielnica natynkowa na 12 pól, Stopień ochrony IP40, Klasa ochronności II, Ochrona przed uderzeniem IK07, Napięcie izolacji Uni -500V , Napięcie robocze Unr-400V ,Prąd znamionowy 100A.
Zgodnie z normą PN-EN 62208-2011
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,4 kg |
| Gross weight: | 1,41 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Flush-mounted/hollow wall |
| Number of rows: | 1 |
| Width in number of modular spacings: | 12 |
| Type of covering: | Door |
| Cover model: | With notch |
| Type of door: | Single |
| Transparent cover/door: | yes |
| Signal passing door: | yes |
| With lock: | no |
| Type of closure: | Push button |
| Housing material: | Plastic |
| Built-in depth: | 70 mm |
| Built-in height: | 210 mm |
| Built-in width: | 310 mm |
| Inner depth: | 70 mm |
| Earthing terminal block: | yes |
| Neutral terminal block: | yes |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | no |
| EMC-version: | yes |
| UV resistant: | no |
| Colour: | White |
| RAL-number: | 9010 |
| Degree of protection (IP): | IP40 |

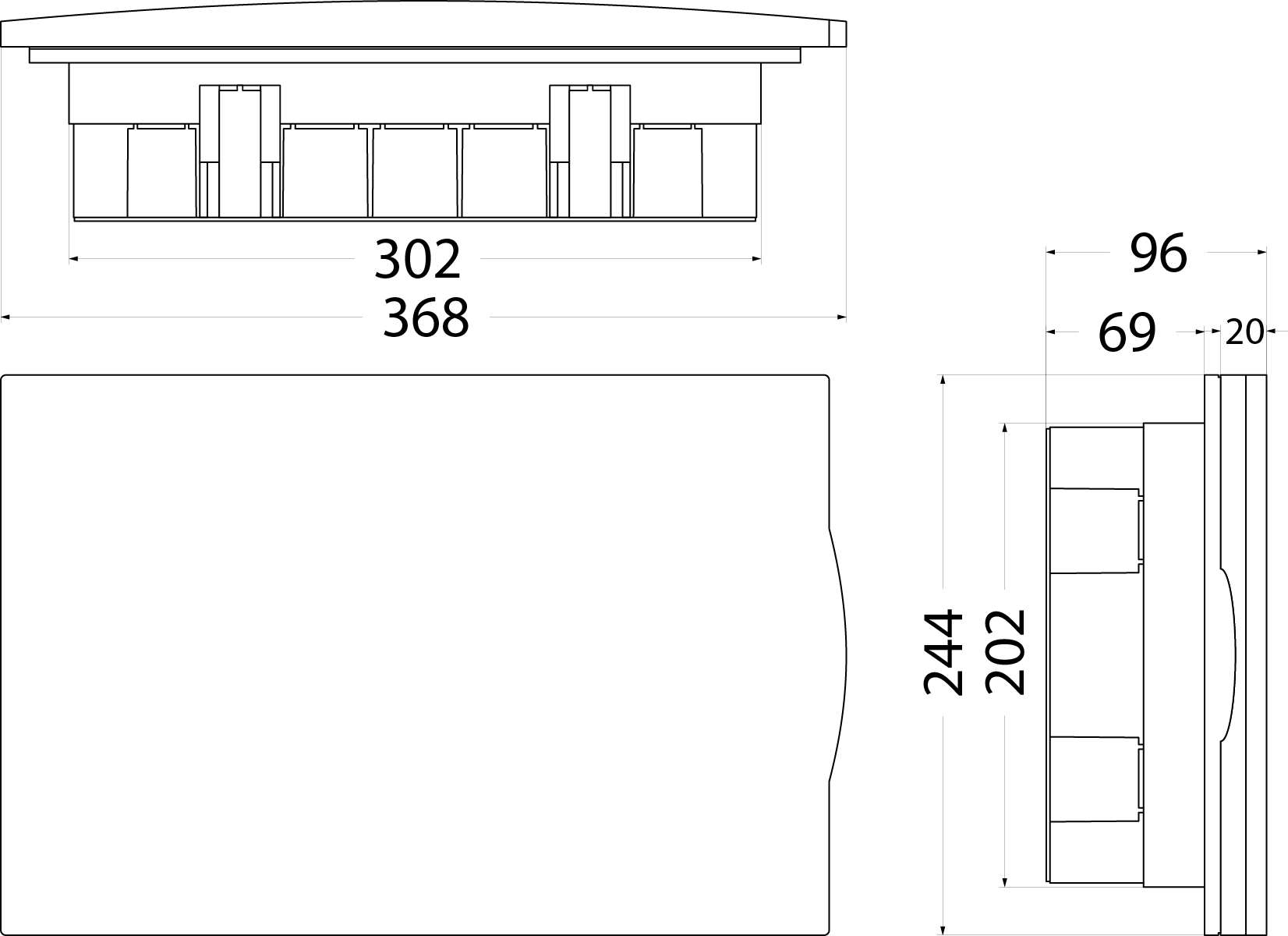

| Height: | 245 mm |
| Width: | 390 mm |
| Depth: | 95 mm |
