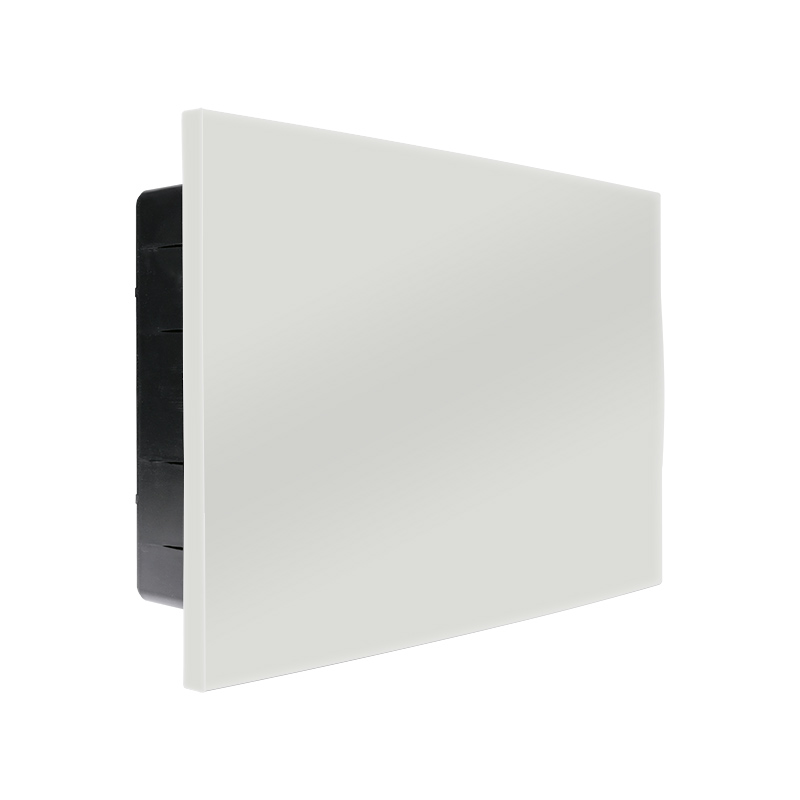

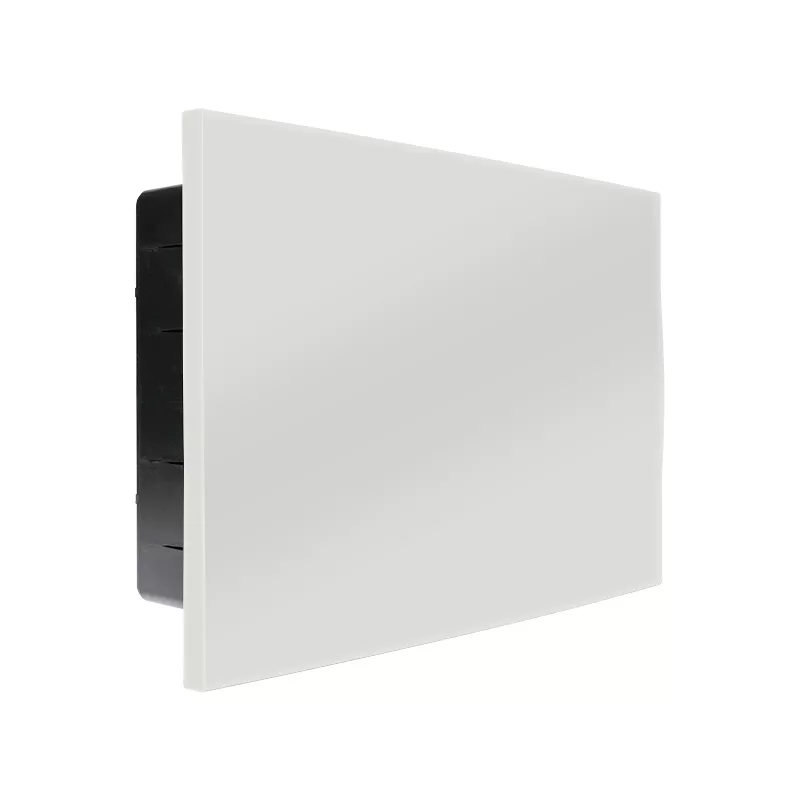

Rozdzielnica Podtynkowa KRP-12/B biały
Information | Value |
---|---|
Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
Symbol | 24.211 |
GTIN(EAN) | 5901769019560 |
Price unit | piece |
Catalog price | 70,81 zł (57,57 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielnica natynkowa na 12 pól, Stopień ochrony IP40, Klasa ochronności II, Ochrona przed uderzeniem IK07, Napięcie izolacji Uni -500V , Napięcie robocze Unr-400V ,Prąd znamionowy 100A.
Zgodnie z normą PN-EN 62208-2011
Additional features:
Information | Value |
---|---|
Net weight: | 1,4 kg |
Gross weight: | 1,41 kg |
ETIM class: | Small distribution board |
Mounting method: | Flush-mounted/hollow wall |
Number of rows: | 1 |
Width in number of modular spacings: | 12 |
Type of covering: | Door |
Cover model: | With notch |
Type of door: | Single |
Transparent cover/door: | no |
Signal passing door: | yes |
With lock: | no |
Type of closure: | Push button |
Housing material: | Plastic |
Built-in depth: | 70 mm |
Built-in height: | 210 mm |
Built-in width: | 310 mm |
Inner depth: | 70 mm |
Earthing terminal block: | yes |
Neutral terminal block: | yes |
DIN-rail: | yes |
With mounting plate: | no |
Extension possible: | no |
EMC-version: | yes |
UV resistant: | no |
Colour: | White |
RAL-number: | 9010 |
Degree of protection (IP): | IP40 |

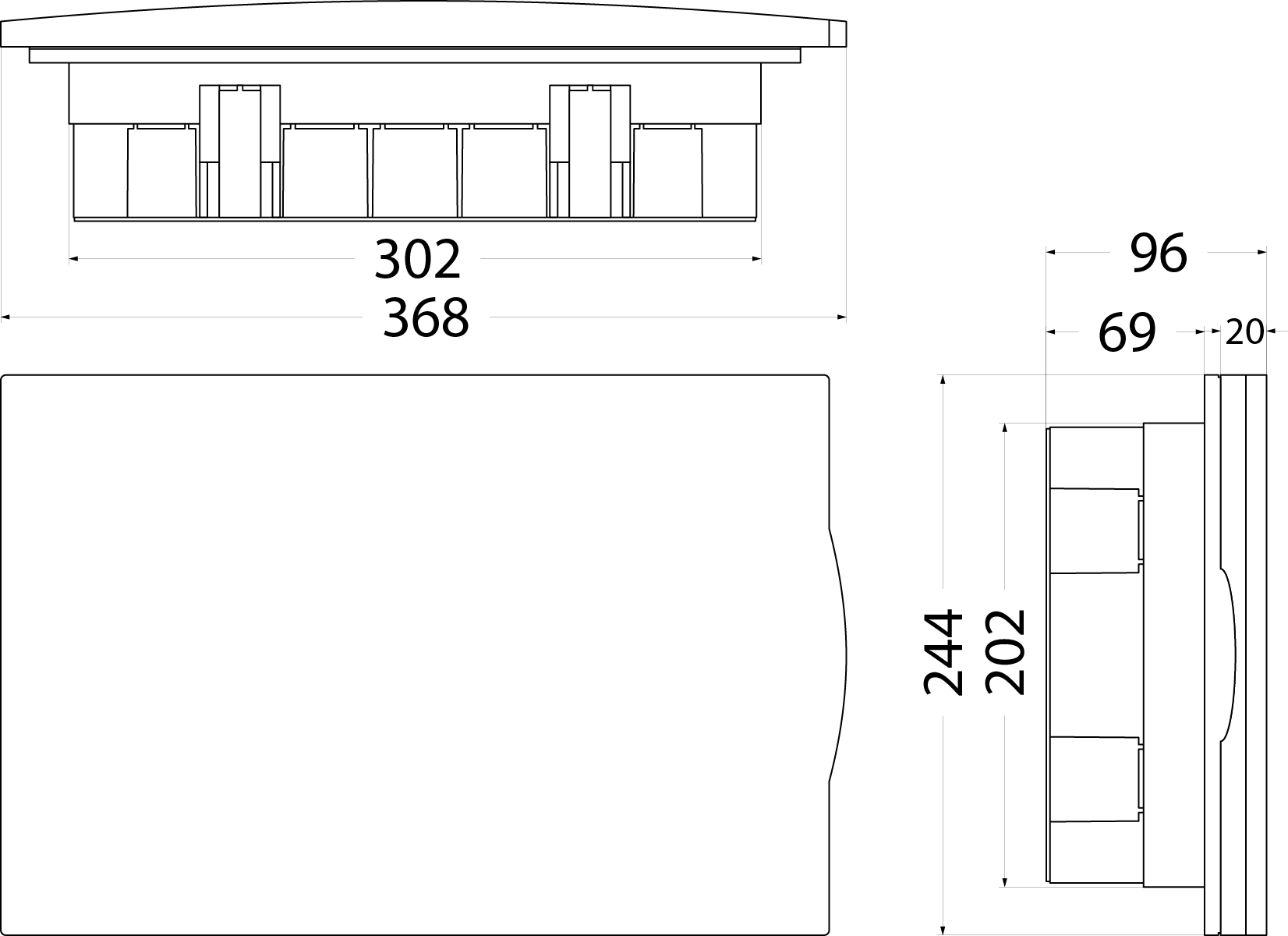

Height: | 245 mm |
Width: | 360 mm |
Depth: | 95 mm |
