PS 2,5/12 Listwa zaciskowa 2,5/12 biała 10A szybkozłączka
| Information | Value |
|---|---|
| Supplier | ELEKTRO-PLAST Opatówek Sp.z o.o. |
| Symbol | 19.2512 |
| GTIN(EAN) | 5901769019089 |
| Price unit | piece |
| Catalog price | 3,55 zł (2,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Obudowa listwy zaciskowej jest wykonana z tworzywa sztucznego która umożliwia łatwe rozdzielanie torów za pomocą noża. Główny zakres wykorzystania listew do montażu w instalacjach oświetleniowych oraz różnych urządzeniach przyłączanych w gospodarstwie domowym. Listwy zaciskowe występują w zakresie mocowania przewodów od 0,5 mm2 do 2,5 mm.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 11,4 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 10.7 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 1.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Rated current In: | 10 A |
| Rated voltage: | 230 V |
| Type of electrical connection 1: | Push-in clamp connection |
| Type of electrical connection 2: | Push-in clamp connection |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Halogen free: | yes |

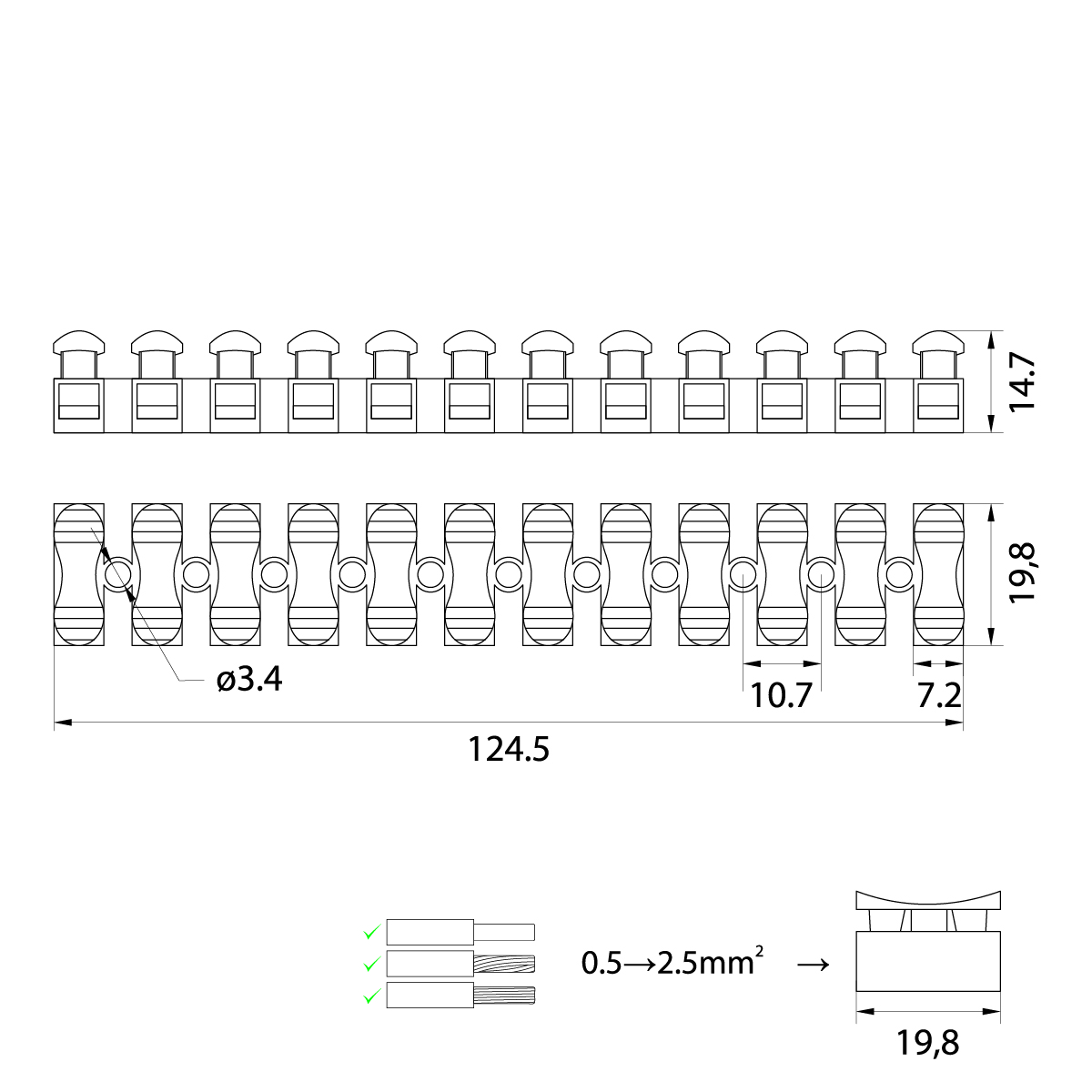

| Width: | 124.5 mm |
| Height: | 19.8 mm |
| Depth: | 14.7 mm |
| Colour: | White |
