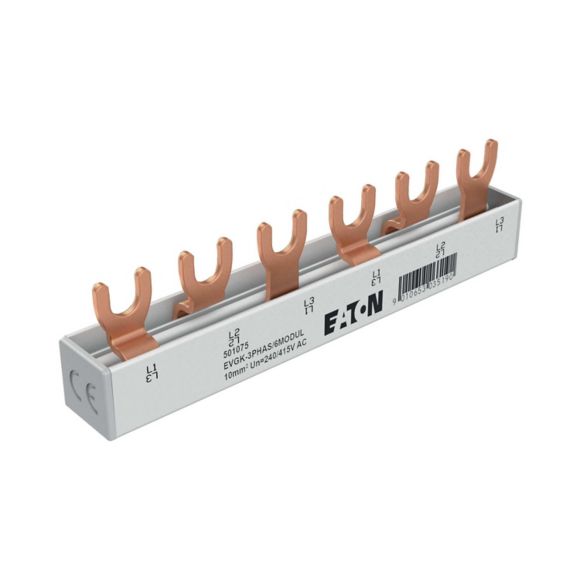

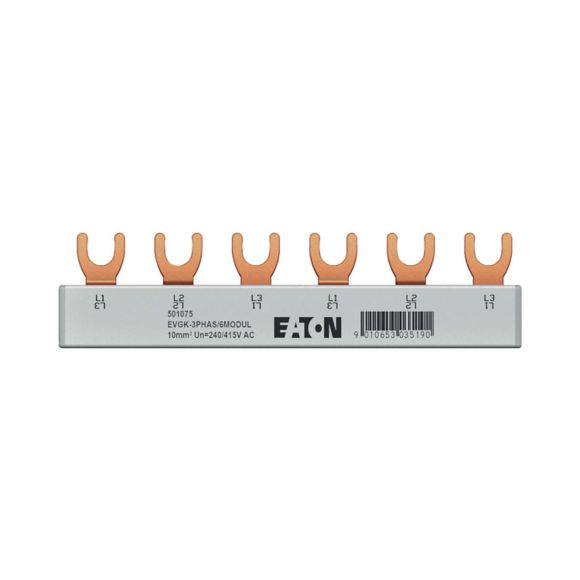

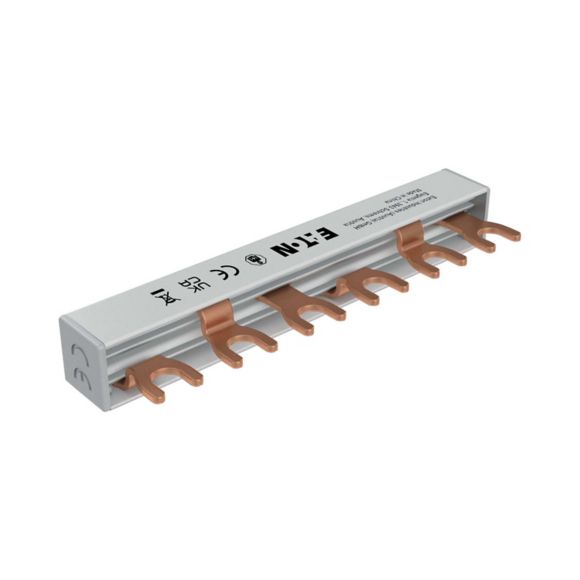

EVGK-3PHAS/6MODUL Szyna łączeniowa 3-faz. 6MU, możliwość przycinania
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | EP-501075 |
| GTIN(EAN) | 9010653035190 |
| Price unit | piece |
| Catalog price | 55,31 zł (44,97 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 36 g |
| ETIM class: | Phase busbar |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Suitable for number of devices: | 2 |
| Module width: | 17.8 mm |
| Cross section: | 10 mm² |
| Length: | 106 mm |
| Width in number of modular spacings: | 6 |
| Rated permanent current Iu: | 63 A |
| Type of electric connection: | Fork |
| Insulated: | yes |
| Rated surge voltage: | 4 kV |
| Conditioned rated short-circuit current Iq: | 25 kA |
| Max. rated operation voltage Ue: | 415 V |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Grey |
