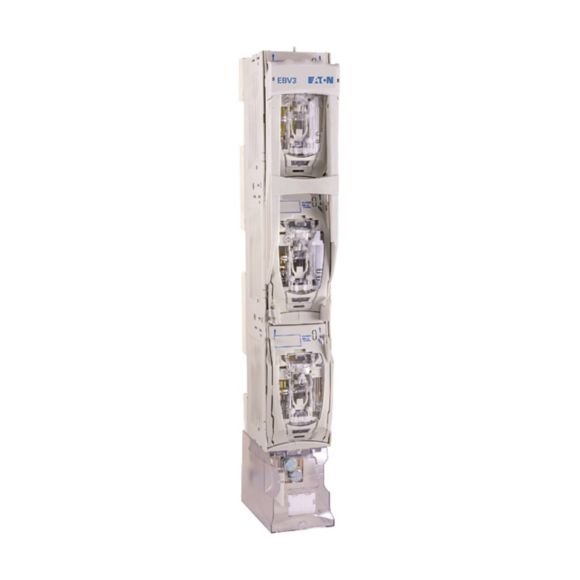

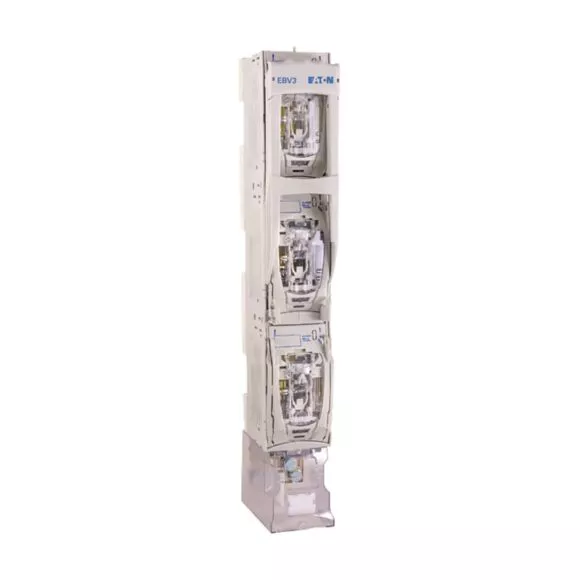

EBV233SM1 Rozłącznik bezpiecznikowy pionowy, 400 A, AC 690 V, NH1|NH2, AC22B, 3P, IEC, Szyna 185 mm, przełączanie każdej fazy, zaciski śrubowe z zaprasowanymi nakrętkami
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | EBV233SM1 |
GTIN(EAN) | 5906739012152 |
Price unit | piece |
Catalog price | 2 654,34 zł (2 158,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 5,432 kg |
ETIM class: | In-line fuse switch disconnector base |
Model: | Fuse switch disconnector |
Double interrupting: | no |
Rated permanent current Iu: | 400 A |
Distance between rail centre, 40 mm: | no |
Distance between rail centre, 50 mm: | no |
Distance between rail centre, 60 mm: | no |
Distance between rail centre, 100 mm: | no |
Distance between rail centre, 185 mm: | yes |
Max. rated operation voltage Ue AC: | 690 V |
Conditioned rated short-circuit current Iq: | 0.1 kA |
Type of electrical connection of main circuit: | Screw connection |
Number of poles: | 3 |
Construction size fuse insert: | NH1, NH2 |
Release indication: | None |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
