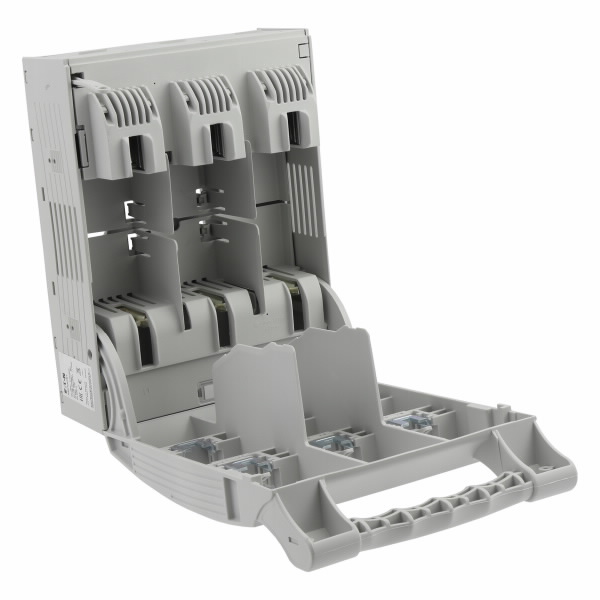

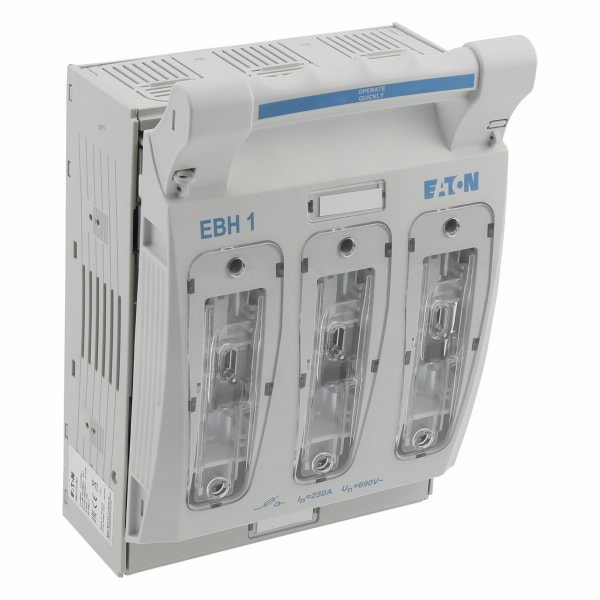

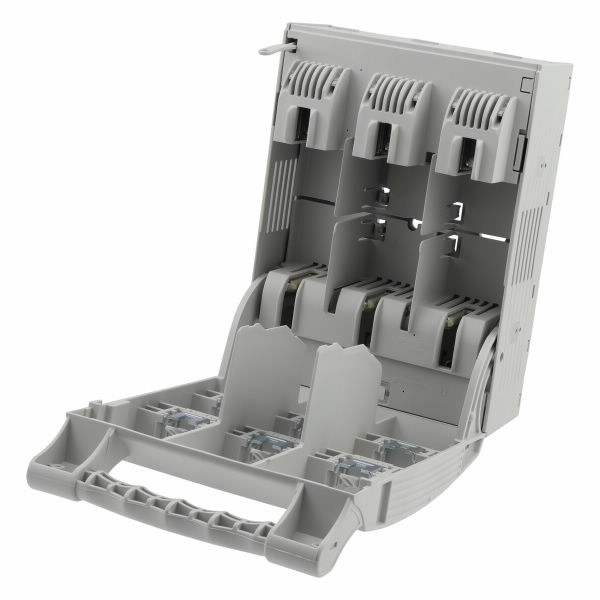

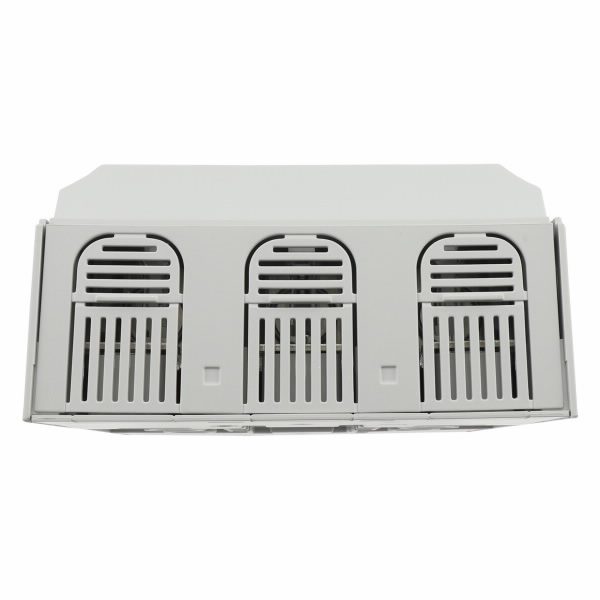

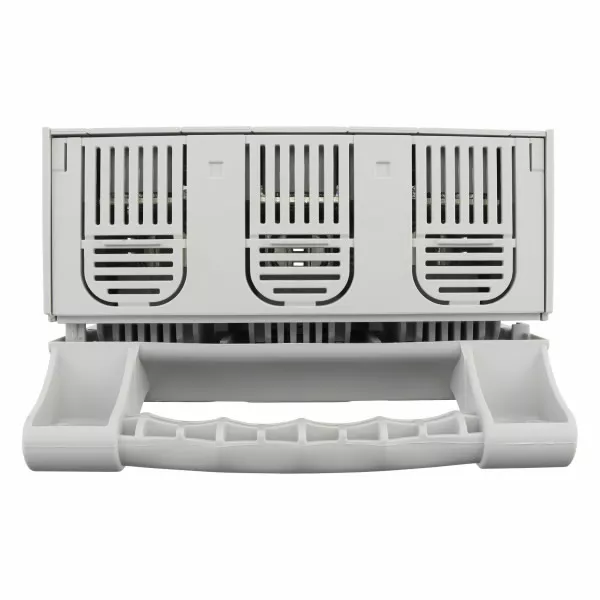

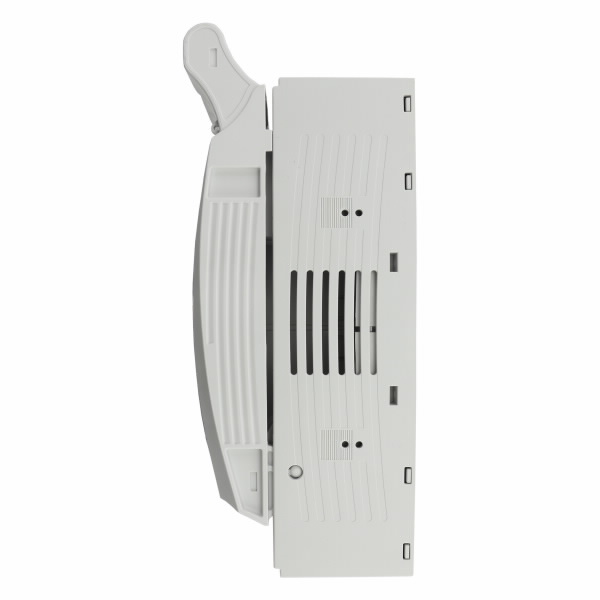

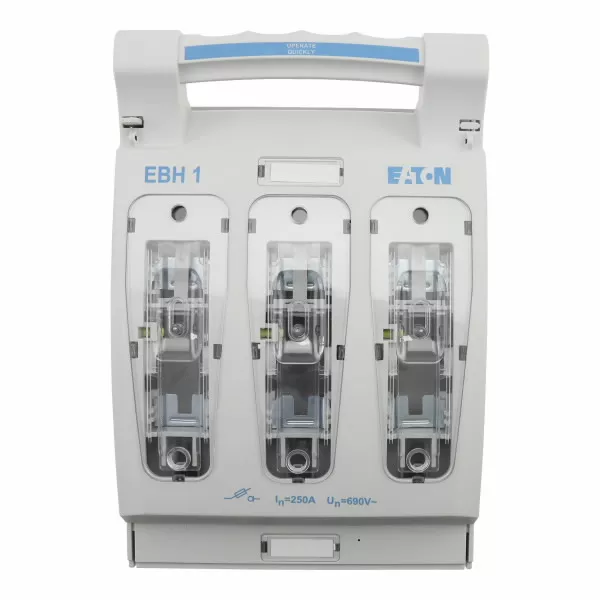

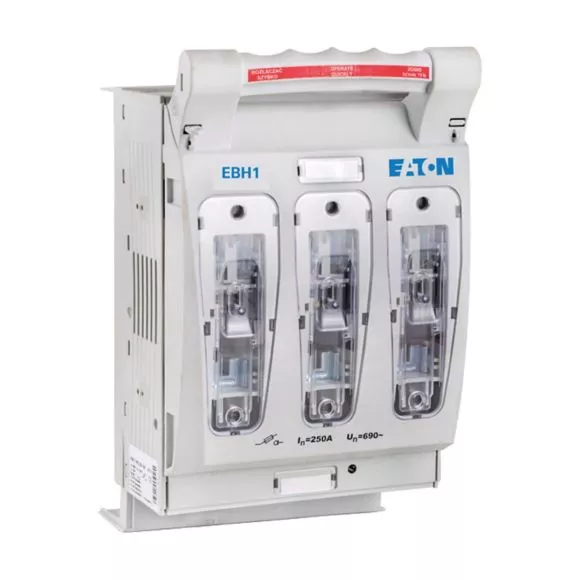

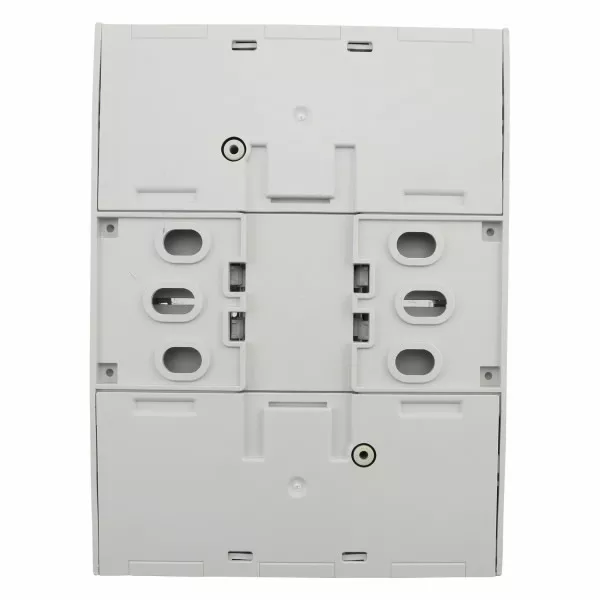

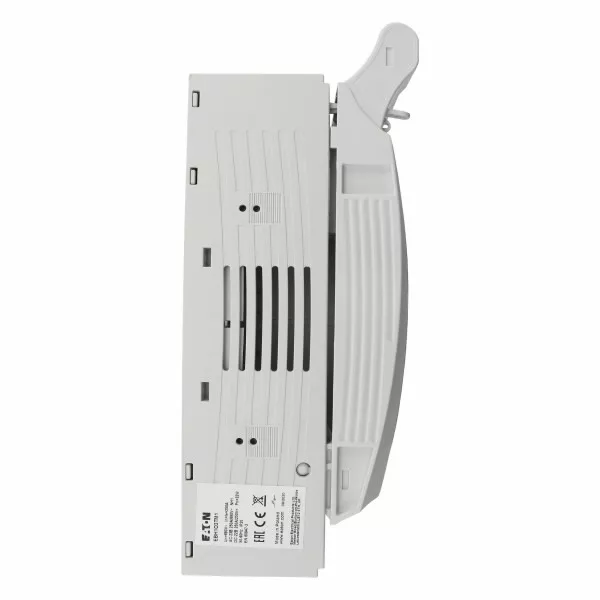

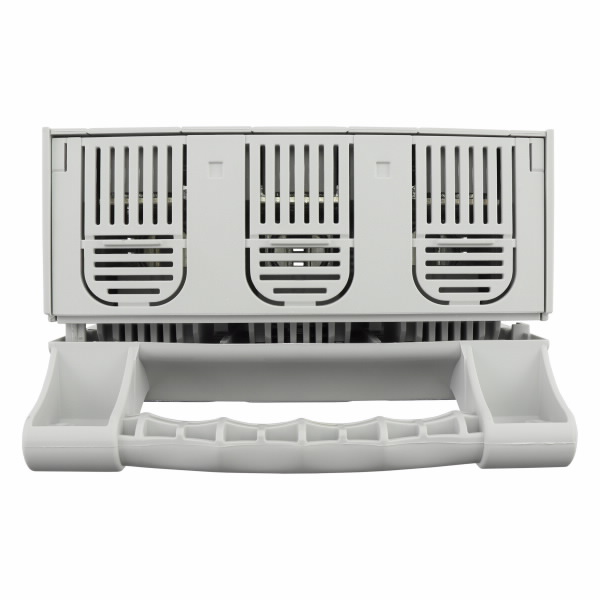

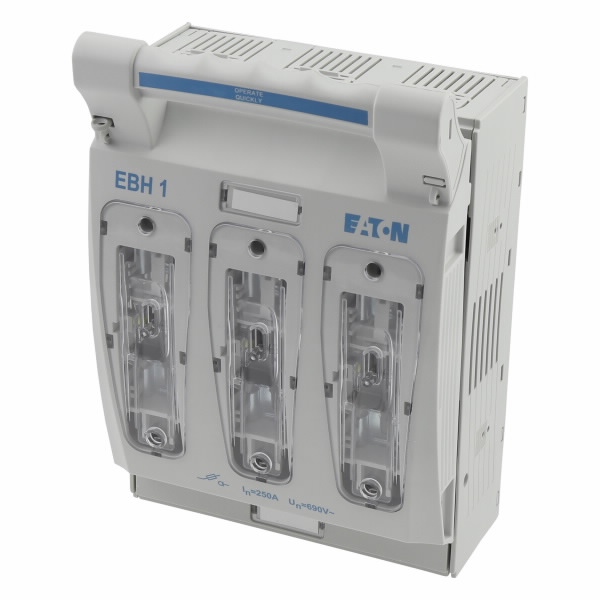

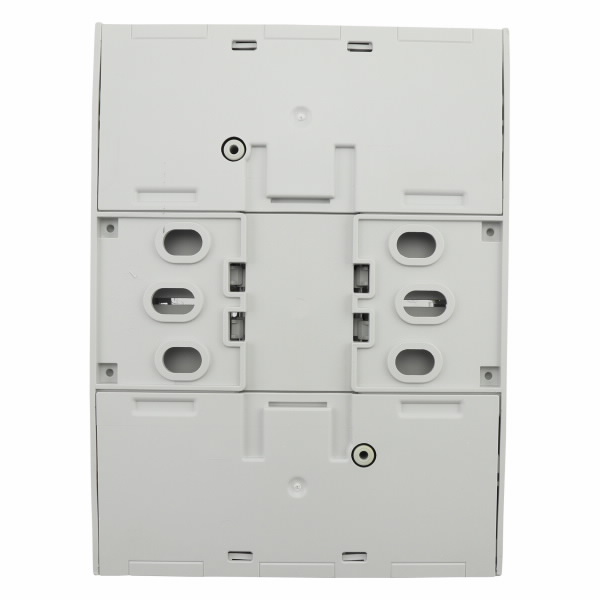

EBH1O3TM1 Rozłącznik bezpiecznikowy poziomy, 250 A, AC 690 V, NH1, AC23B, 3P, IEC, montaż śrubowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | EBH1O3TM1 |
| GTIN(EAN) | 5906739010608 |
| Price unit | piece |
| Catalog price | 1 455,09 zł (1 183,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,216 kg |
| Country of origin | Polska |
| ETIM class: | Fuse switch disconnector |
| Version as main switch: | no |
| Version as safety switch: | no |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated permanent current Iu: | 250 A |
| Rated operation power at AC-23, 400 V: | 0.1 kW |
| Conditioned rated short-circuit current Iq: | 0.08 kA |
| Suitable for fuses: | NH1 |
| Number of poles: | 3 |
| With error protection: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Cable entry: | Other |
| Equipped with connectors: | no |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | yes |
| Suitable for busbar mounting: | no |
| Type of control element: | Cover grip |
| Position control element: | Front side |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Version as emergency stop installation: | no |
| Degree of protection (IP), front side: | IP30 |
