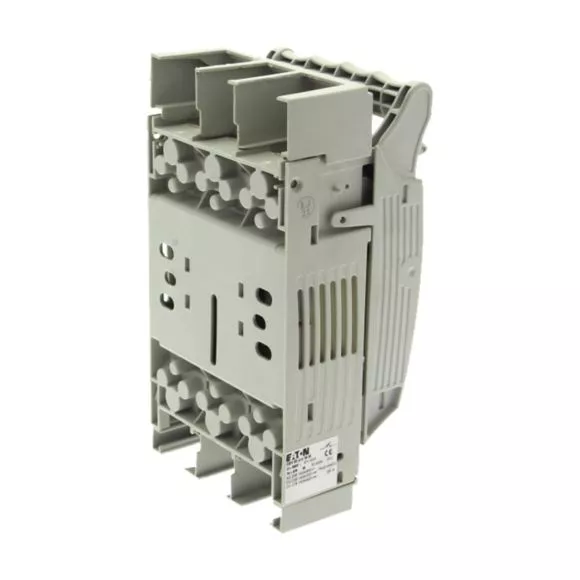

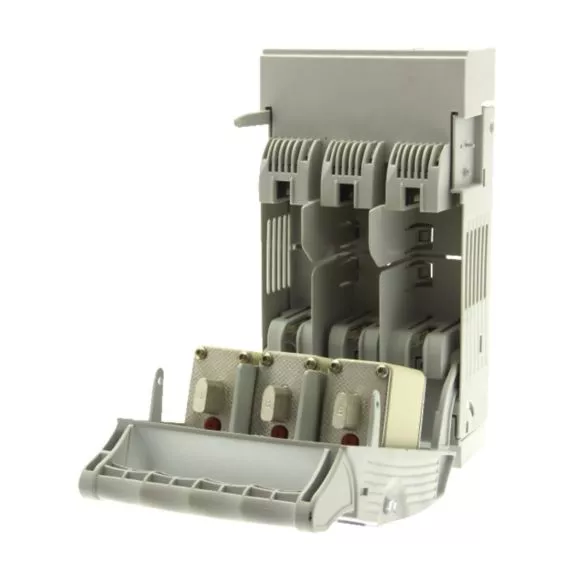

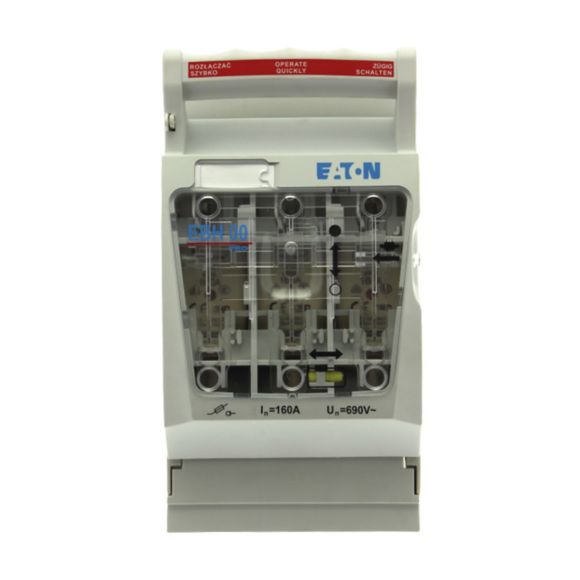

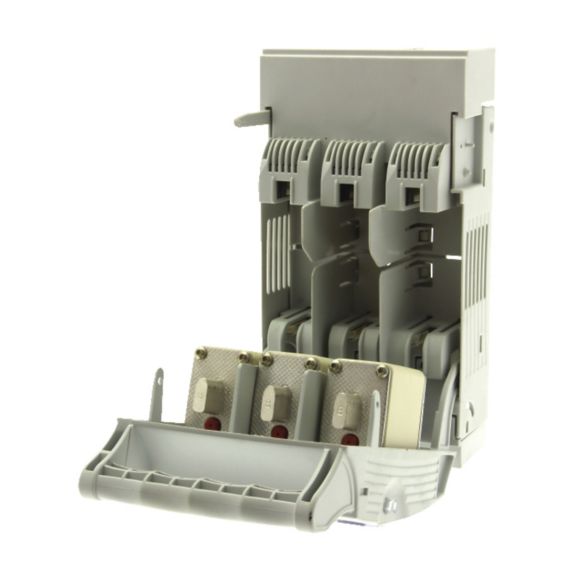

EBH0013TTF Rozłącznik bezpiecznikowy poziomy, 160 A, AC 690 V, NH00, AC23B, 3P, IEC, montaż na szynie 60mm: zaciski ramowe, górne
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | EBH0013TTF |
GTIN(EAN) | 5906739013692 |
Price unit | piece |
Catalog price | 889,54 zł (723,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 1,041 kg |
ETIM class: | Fuse switch disconnector |
Version as main switch: | no |
Version as safety switch: | no |
Max. rated operation voltage Ue AC: | 690 V |
Rated permanent current Iu: | 160 A |
Rated operation power at AC-23, 400 V: | 0.064 kW |
Conditioned rated short-circuit current Iq: | 0.08 kA |
Suitable for fuses: | NH00 |
Number of poles: | 3 |
With error protection: | no |
Type of electrical connection of main circuit: | Cable clamp |
Equipped with connectors: | no |
Suitable for floor mounting: | no |
Suitable for front mounting: | no |
Suitable for busbar mounting: | yes |
Type of control element: | Cover grip |
Position control element: | Front side |
Motor drive optional: | no |
Motor drive integrated: | no |
Version as emergency stop installation: | no |
Degree of protection (IP), front side: | IP30 |
