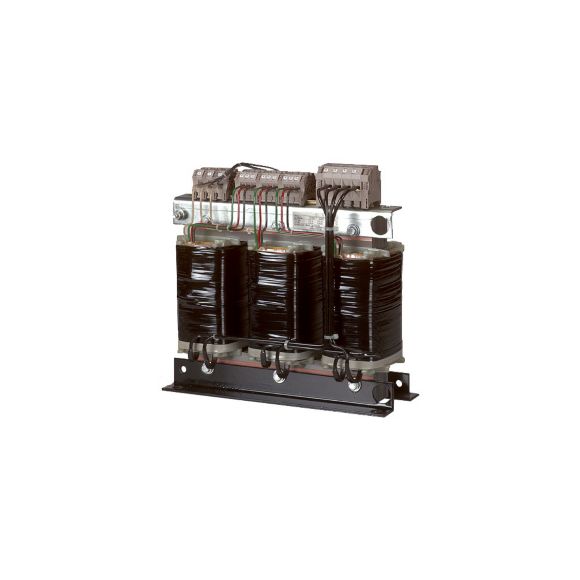

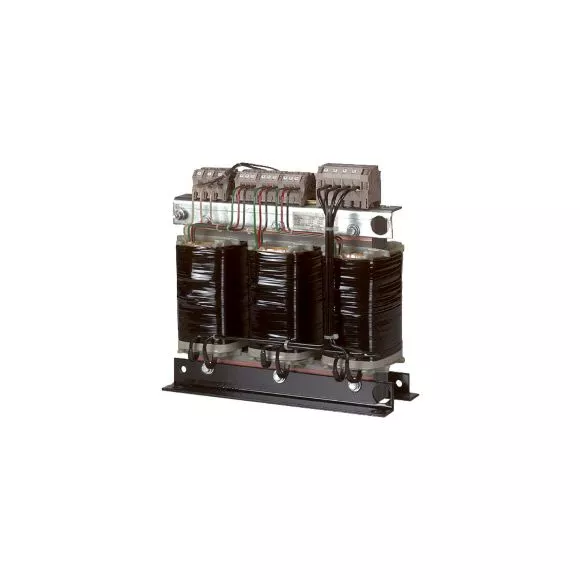

DTZ8,0(*/*)* 3-faz. trafo sterujący,separ. i bezp.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 914811 |
Price unit | piece |
Catalog price | 22 061,28 zł (17 936,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Trójfazowy transformator sterujący w wersji zgodnej z VDE 0550, VDE 0550 część 1, IEC/EN 61558-2-2, VDE0570 część 2-2 jako transformator zabezpieczający VDE 0570 część 2-6 i jako transformator odcinający VDE 0570 część 2-4, OVE. Nominalne napięcie wejściowe 50-950V +- 5%, nominalne napięcie wyjściowe do wyboru 18,5 – 1000 moc nominalna 8 kVA (*/*) = symbol zastępczy nominalnego napięcia wejściowego/nominalnego napięcia wyjściowego
Additional features:
Information | Value |
---|---|
Net weight: | 55 kg |
ETIM class: | Three-phase control transformer |
Built as safety transformer: | yes |
Built as isolating transformer: | yes |
Built as energy saving transformer: | no |
Primary voltage 1: | 50 - 950 V |
Primary voltage 2: | 50 - 950 V |
Primary voltage 3: | 50 - 950 V |
Primary voltage 4: | 50 - 950 V |
Primary voltage 5: | 50 - 950 V |
Primary voltage 6: | 50 - 950 V |
Primary voltage 7: | 0 - 0 V |
Primary voltage 8: | 0 - 0 V |
Primary voltage 9: | 0 - 0 V |
Primary voltage 10: | 0 - 0 V |
Secondary voltage 1: | 18.5 - 1000 V |
Secondary voltage 2: | 18.5 - 1000 V |
Secondary voltage 3: | 18.5 - 1000 V |
Secondary voltage 4: | 18.5 - 1000 V |
Secondary voltage 5: | 18.5 - 1000 V |
Secondary voltage 6: | 18.5 - 1000 V |
Secondary voltage 7: | 0 - 0 V |
Secondary voltage 8: | 0 - 0 V |
Secondary voltage 9: | 0 - 0 V |
Secondary voltage 10: | 0 - 0 V |
Wiring system: | Other |
Rated power: | 8000 VA |
Type of insulation material according to IEC 85: | B |
Short-circuit-proof: | no |
Relative short circuit voltage: | 4 % |
Conductor material: | Copper |
Width: | 390 mm |
Height: | 374 mm |
Depth: | 200 mm |
Degree of protection (IP): | IP00 |
Degree of protection (NEMA): | Other |
