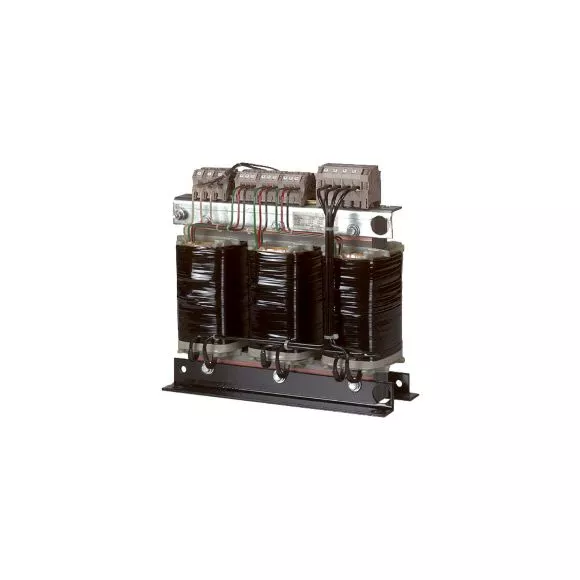

DTZ0,63(*/*)* 3-faz. trafo sterujący,separ. i bezp.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 914804 |
| Price unit | piece |
| Catalog price | 4 708,44 zł (3 828,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Trójfazowy transformator sterujący w wersji zgodnej z VDE 0550, VDE 0550 część 1, IEC/EN 61558-2-2, VDE0570 część 2-2 jako transformator zabezpieczający VDE 0570 część 2-6 i jako transformator odcinający VDE 0570 część 2-4, UL 506, CSA 22.2 No.66, OVE. Nominalne napięcie wejściowe 50-950V +- 5%, nominalne napięcie wyjściowe do wyboru 18,5 – 1000 moc nominalna 0,63 kVA (*/*) = symbol zastępczy nominalnego napięcia wejściowego/nominalnego napięcia wyjściowego
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8,9 kg |
| ETIM class: | Three-phase control transformer |
| Built as safety transformer: | yes |
| Built as isolating transformer: | yes |
| Built as energy saving transformer: | no |
| Primary voltage 1: | 50 - 950 V |
| Primary voltage 2: | 50 - 950 V |
| Primary voltage 3: | 50 - 950 V |
| Primary voltage 4: | 50 - 950 V |
| Primary voltage 5: | 50 - 950 V |
| Primary voltage 6: | 50 - 950 V |
| Primary voltage 7: | 0 - 0 V |
| Primary voltage 8: | 0 - 0 V |
| Primary voltage 9: | 0 - 0 V |
| Primary voltage 10: | 0 - 0 V |
| Secondary voltage 1: | 18.5 - 1000 V |
| Secondary voltage 2: | 18.5 - 1000 V |
| Secondary voltage 3: | 18.5 - 1000 V |
| Secondary voltage 4: | 18.5 - 1000 V |
| Secondary voltage 5: | 18.5 - 1000 V |
| Secondary voltage 6: | 18.5 - 1000 V |
| Secondary voltage 7: | 0 - 0 V |
| Secondary voltage 8: | 0 - 0 V |
| Secondary voltage 9: | 0 - 0 V |
| Secondary voltage 10: | 0 - 0 V |
| Wiring system: | Other |
| Rated power: | 630 VA |
| Type of insulation material according to IEC 85: | B |
| Short-circuit-proof: | no |
| Relative short circuit voltage: | 5.5 % |
| Conductor material: | Copper |
| Width: | 190 mm |
| Height: | 191 mm |
| Depth: | 132 mm |
| Degree of protection (IP): | IP00 |
| Degree of protection (NEMA): | Other |
