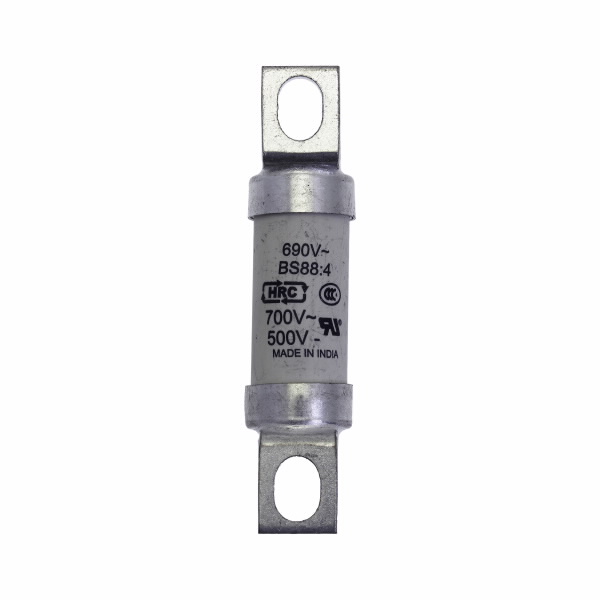

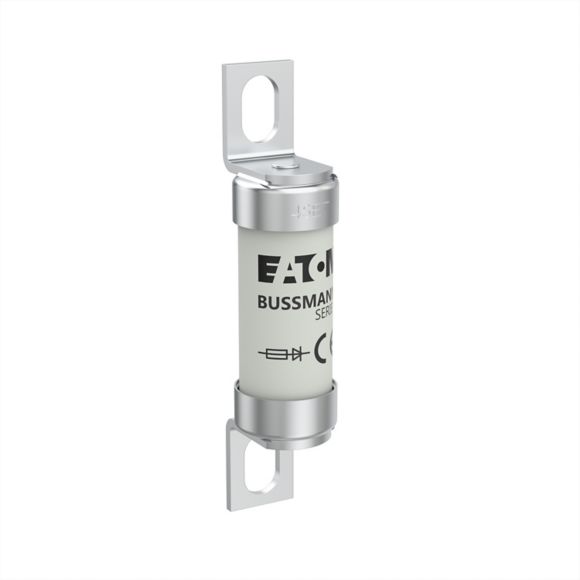

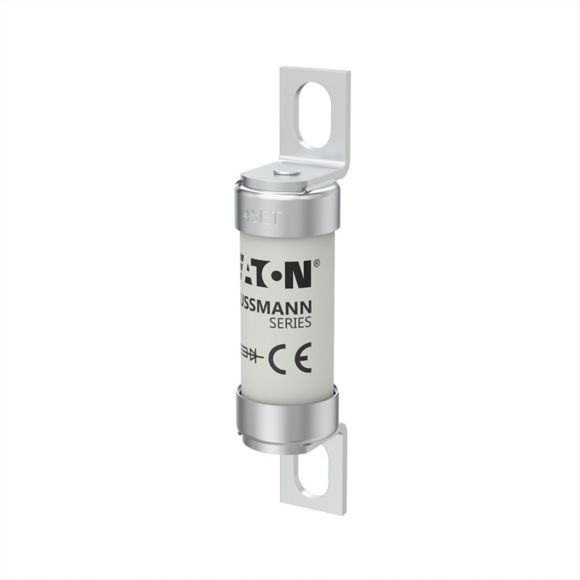

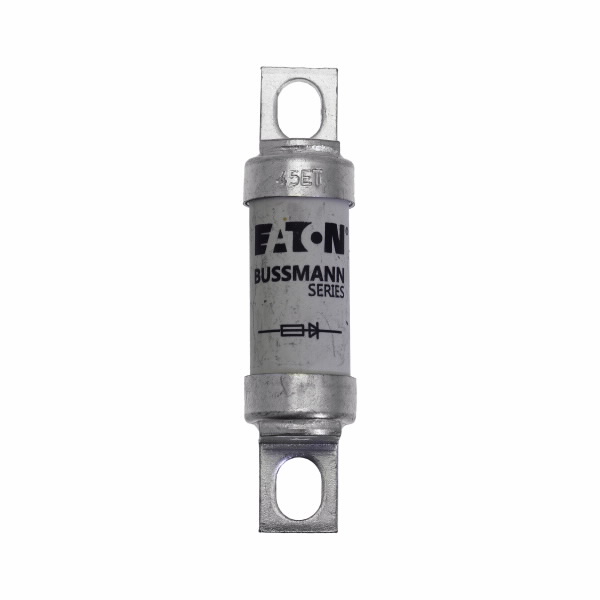

45ET Wkładka szybka, 45 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, aR, BS
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 45ET |
| GTIN(EAN) | 5027590480789 |
| Price unit | piece |
| Catalog price | 119,88 zł (97,46 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 41,4 g |
| ETIM class: | HRC fuse |
| Fuse construction type according to IEC 60269: | Other |
| Type of current: | AC/DC |
| Rated voltage AC: | 690 V |
| Rated voltage DC: | 500 V |
| Rated current: | 45 A |
| Utilization category: | aR (accompanied semiconductor protection) |
| Breaking capacity: | 200 kA |
| Colour code: | None |
| Type of fuse status indicator: | None |
| Power loss at rated current: | 11 W |
| Mounting holes: | M6 |
| Centre-to-centre distance of connections: | 62 mm |
