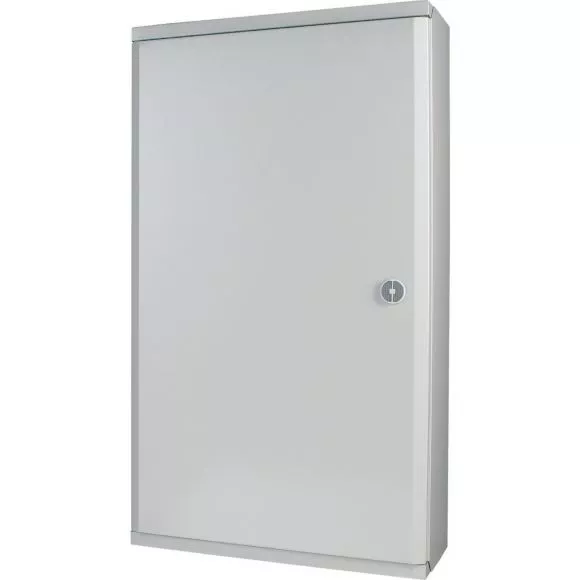

BP-O-800/10-C Rozdzielnica natynkowa, metalowa, IP 30, z wyposażeniem na 210 mod.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 293312 |
| GTIN(EAN) | 4015082933128 |
| Price unit | piece |
| Catalog price | 4 008,57 zł (3 259,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Surface-mounted service distribution board with cam lock - completely assembled, IP30, gray, RAL 7035, width 800 mm, outside height 1060 mm, 210 HP, 6 rows, incl. base frame, enclosure side plates, base/roof panels and door, includes BPZ-DINR...B DIN-rail kits, includes front plates (150 mm ) with device cutout (45 mm), includes top cable entry, with push-through flange, with blanking bottom panels, mounted on base frame - no MSW mounting kit, module design, earthed metal covers, completely mounted, can be grouped, ample wiring area, variable interior fittings with or without removable mounting frame, well-structured, multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure, door can be right-hand or left-hand door
Additional features:
| Information | Value |
|---|---|
| Net weight: | 35,5 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Colour: | Grey |
| Width: | 815 mm |
| Height: | 1075 mm |
| Depth: | 280 mm |
| RAL-number: | 7035 |
| Built-in depth: | 280 mm |
| Number of rows: | 6 |
| Built-in height: | 1075 mm |
| Type of covering: | Door |
| Built-in width: | 815 mm |
| EMC-version: | yes |
| Extension possible: | yes |
| Inner depth: | 257.5 mm |
| DIN-rail: | yes |
| Housing material: | Steel |
| Width in number of modular spacings: | 35 |
| Type of closure: | Other |
| Degree of protection (IP): | IP30 |
| Cover model: | Closed |
