BPZ-KB-24/250 Most szynowy 4-fazowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 289971 |
| GTIN(EAN) | 4015082899714 |
| Price unit | piece |
| Catalog price | 1 554,72 zł (1 264,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

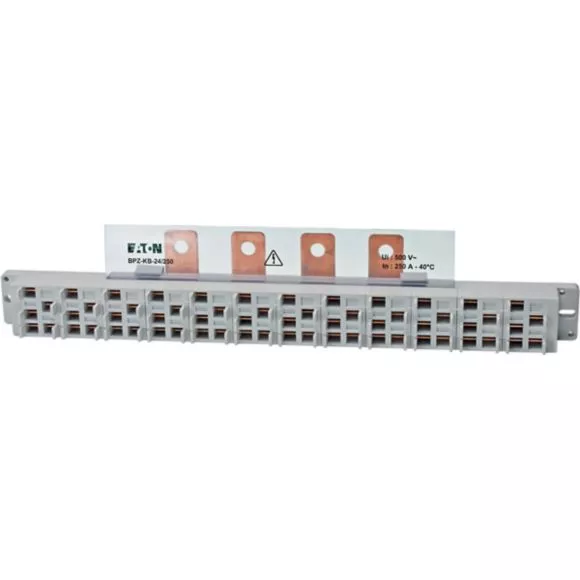

4-phase busbar, BPZ-KB-24/250, 12 outgoers per pole, neutral conductor 24 outgoers, 250 A busbar for powering a series of module devices, max. rated operational current per outgoer is 63 A, every plug closes automatically, ensuring a high level of safety. No direct contact risk, as per IP20, L x W x H: 427mm x 40mm x 50mm, equipment supplied: 1 4-phase busbars
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,3 kg |
| ETIM class: | Distributor assembly terminal blocks |
| Height: | 84 mm |
| Width: | 427 mm |
| Depth: | 51 mm |
| Max. rated current: | 250 A |
| Number of poles: | 4 |
| Conductor cross section flexible (fine-strand) with cable end sleeve: | 1.5 - 10 mm² |
| Conductor cross section solid (solid, stranded): | 0 - 0 mm² |
| Number of clamp positions per pole: | 12 |
| With PE-rail: | no |
| With N-rail: | yes |
