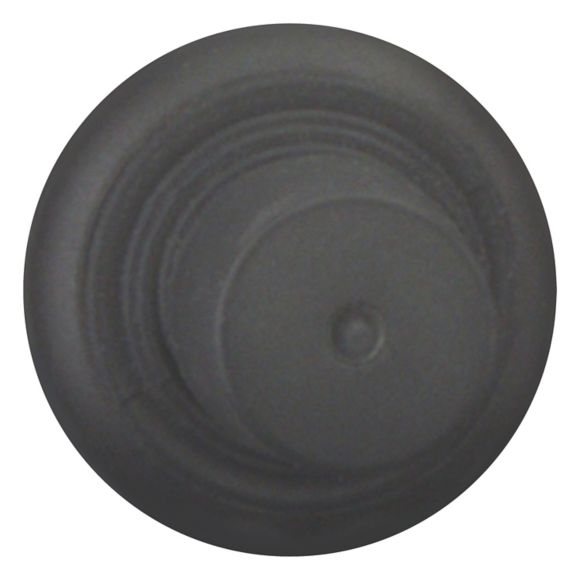

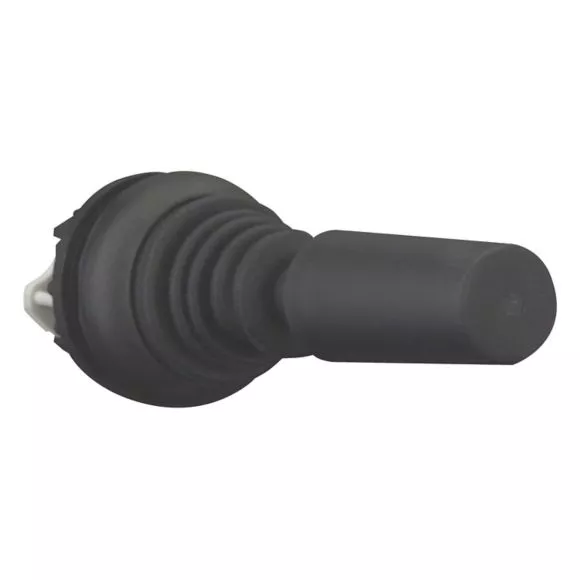

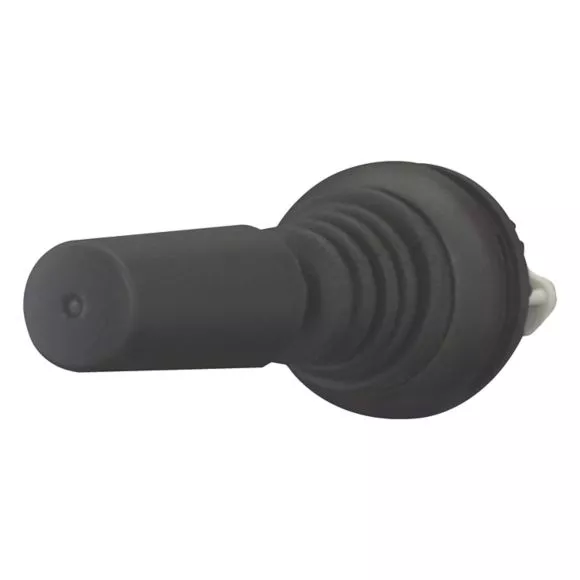

M22S-WJ2H Joystick, IP66
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 289197 |
GTIN(EAN) | 4015082891978 |
Price unit | piece |
Catalog price | 326,81 zł (265,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Joystik a asortymencie RMQ-Titan jest oferowany w wersji z samopowrotem i bez samopowrotu. W prostym kierunku ruchu, w zależności od typu, możliwy jest kierunek poziomy lub pionowy. Przycisk jest zgodny ze stopniem ochrony IP66 i został dopuszczony do użytkowania na całym świecie.
Additional features:
Information | Value |
---|---|
Net weight: | 28 g |
ETIM class: | Control switch, Joystick |
Rated operation current Ie at AC-21, 400 V: | 0 A |
Centre mounting, hole diameter: | 22.5 mm |
Joy stick length: | 75 mm |
Number of actuation directions: | 2 |
Number of switch positions: | 1 |
Number of normally open contacts per actuation direction: | 0 |
Number of normally closed contacts per actuation direction: | 0 |
Number of make-and-break contacts per direction: | 0 |
With retraction in 0-position: | yes |
Locking in 0-position: | no |
Coder: | no |
Analogue output signal configurable: | no |
With front ring: | yes |
Material front ring: | Plastic |
Colour front ring: | Black |
Degree of protection (IP): | IP66 |
Degree of protection (NEMA): | 4X, 13 |
