BP-MF-400/4 Rama główna szer. 400mm
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 286653 |
GTIN(EAN) | 4015082866532 |
Price unit | piece |
Catalog price | 565,43 zł (459,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

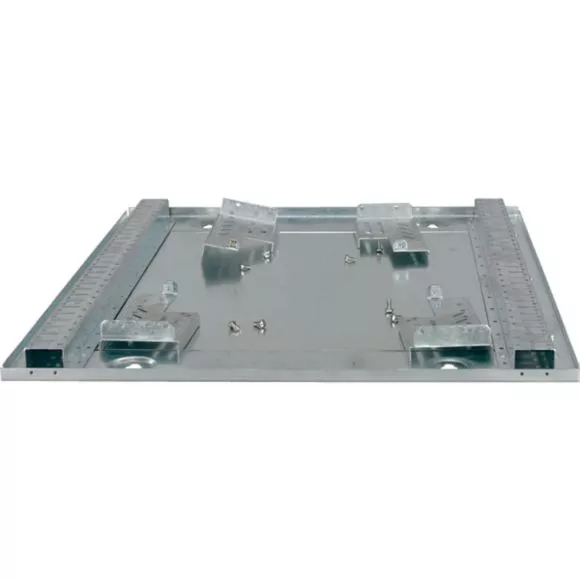

Base frame, BP-MF for surface-mount service distribution board, width 400 mm, outside height 460 mm, front plate height 350 mm, symmetrical assembly, 25-mm system through-holes, material characteristic: sheet steel (1 mm), zinc coated, equipment supplied: 1 base frame (base plate), 4 corner towers, various mounting accessories
Additional features:
Information | Value |
---|---|
Net weight: | 4,5 kg |
ETIM class: | Enclosure/cabinet (empty) |
Width: | 415 mm |
Height: | 480 mm |
Depth: | 50 mm |
Material: | Steel |
Material quality: | Other |
Surface finishing: | Galvanized |
Colour: | Stainless steel |
RAL-number: | 0 |
Freestanding: | no |
Floor standing wall model: | no |
Suitable for wall mounting: | yes |
Corner model: | no |
Intermediate mounting: | no |
Couplable: | yes |
With mounting plate: | no |
Mounting plate depth-adjustable: | no |
Suitable for wall built-in: | no |
Pole fastening: | no |
Number of doors: | 0 |
Number of locks: | 0 |
Suitable for metrical mounting: | yes |
Suitable for outdoor set-up: | no |
Pitched roof: | no |
EMC-version: | yes |
With glazed door: | no |
With ventilation door: | no |
With rear door: | no |
Impact strength: | IK08 |
Degree of protection (IP): | IP30 |
Degree of protection (NEMA): | Other |
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890: | 0 W |
Max. permissible load of the enclosure according to IEC 62208: | 0 N |
Max. permissible load of the door(s) according to IEC 62208: | 0 N |
Max. permissible load of the mounting plate according to IEC 62208: | 0 N |
