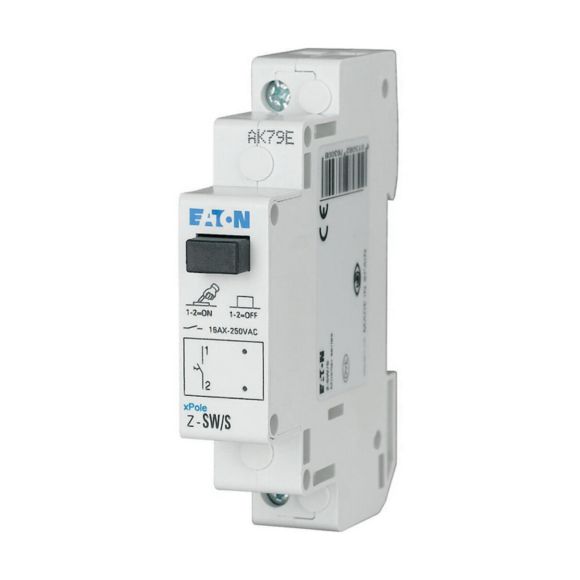

Z-SW/S Przełącznik
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 276300 |
| GTIN(EAN) | 4015082763008 |
| Price unit | piece |
| Catalog price | 108,83 zł (88,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przełącznik, funkcja: 1 zestyków zwiernych, znamionowy prąd pracy 16A, znamionowe napięcie pracy 250V AC, kolor przycisku czarny, wymiary montażowe zatyczki 45mm, szerokość montażowa 1JC (17,5mm), wyłącznik naprądowy, przekrój zacisku 1-10 mm², wersja zgodna z IEC/EN 60669, VDE 0632
Additional features:
| Information | Value |
|---|---|
| Net weight: | 60 g |
| ETIM class: | Main switch for distribution board |
| Switching function: | Control switch |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Number of poles: | 1 |
| Rated current: | 16 A |
| Rated voltage: | 250 V |
| Min. rated voltage: | 230 V |
| Short-circuit breaking capacity (Icw): | 0.02 kA |
| Voltage type: | AC |
| With signal lamp: | no |
| Colour calotte: | Other |
| Lamp type: | Other |
| Lamp socket: | Other |
| Max. lamp power: | 0 W |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 60 mm |
| Degree of protection (IP): | IP40 |
| Imprint/indication: | Other |
| Forced segregation according to DIN VDE 0113: | no |
| Rated switching capacity: | 0.016 kA |
