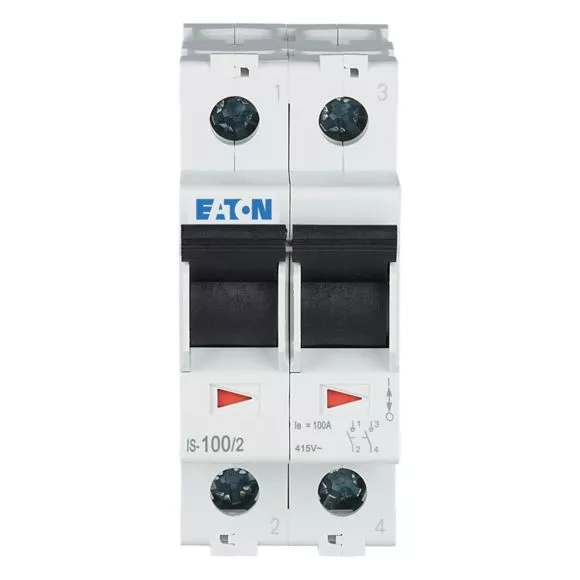

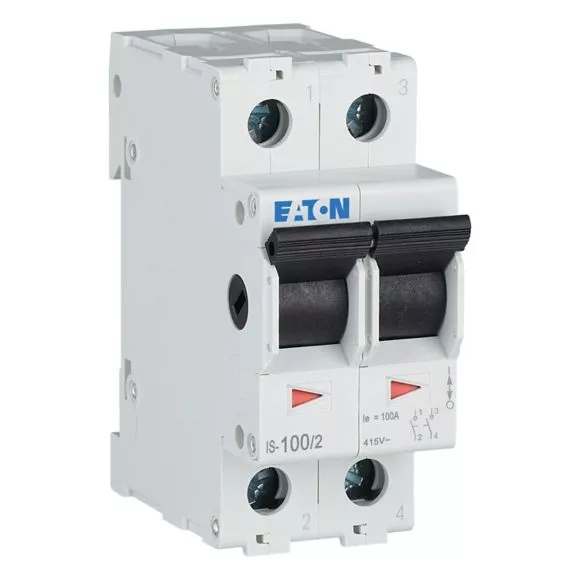

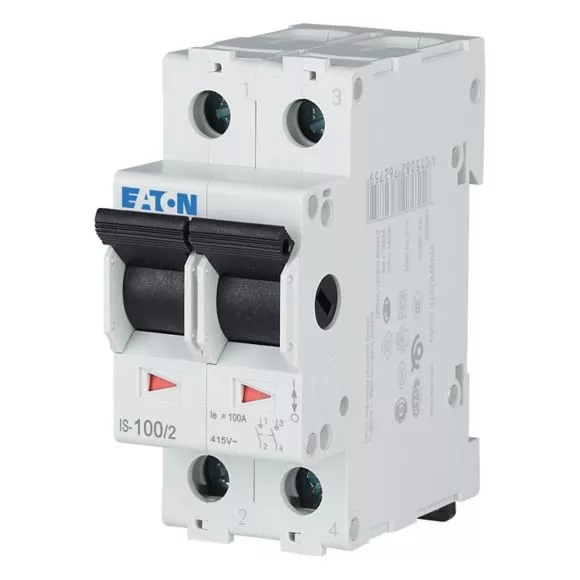

IS-100/2 Rozłącznik główny izolacyjny
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 276283 |
GTIN(EAN) | 4015082762834 |
Price unit | piece |
Catalog price | 151,66 zł (123,30 zł + 23% VAT) |
Sale price | from 46,74 zł / szt. (38,00 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Odłącznik mocy z funkcją odłączania, wersja zgodna z IEC/EN 60947-3, wysoka wytrzymałość styków na zużycie, włączanie skokowe, kolor pokrętła: czarny, przekrój zacisku 50mm², zgodność z oszynowaniem z urządzeniami ochronnymi Xpole przy zastosowaniu zacisku szczękowego ze standardowym oszynowaniem widełkowym
Additional features:
Information | Value |
---|---|
Net weight: | 207 g |
ETIM class: | Main switch for distribution board |
Switching function: | Other |
Number of contacts as normally open contact: | 0 |
Number of contacts as normally closed contact: | 0 |
Number of contacts as change-over contact: | 0 |
Number of poles: | 2 |
Rated current: | 100 A |
Rated voltage: | 415 V |
Min. rated voltage: | 240 V |
Rated switching capacity: | 0 kA |
Short-circuit breaking capacity (Icw): | 2 kA |
Voltage type: | AC |
With signal lamp: | no |
Colour calotte: | Other |
Lamp type: | Other |
Lamp socket: | Other |
Max. lamp power: | 0 W |
Width in number of modular spacings: | 2 |
Built-in depth: | 69.5 mm |
Degree of protection (IP): | IP40 |
Imprint/indication: | Symbol "arrows" |
Forced segregation according to DIN VDE 0113: | no |
