KLM LISTWA ZACISKOWA
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 275452 |
GTIN(EAN) | 4015082754525 |
Price unit | piece |
Catalog price | 425,95 zł (346,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

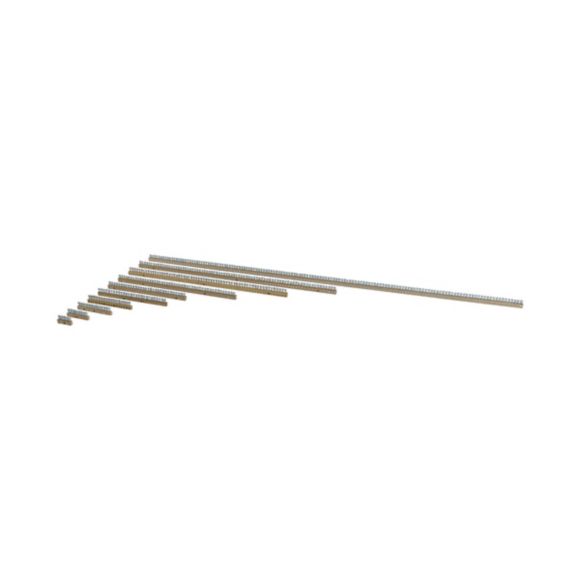

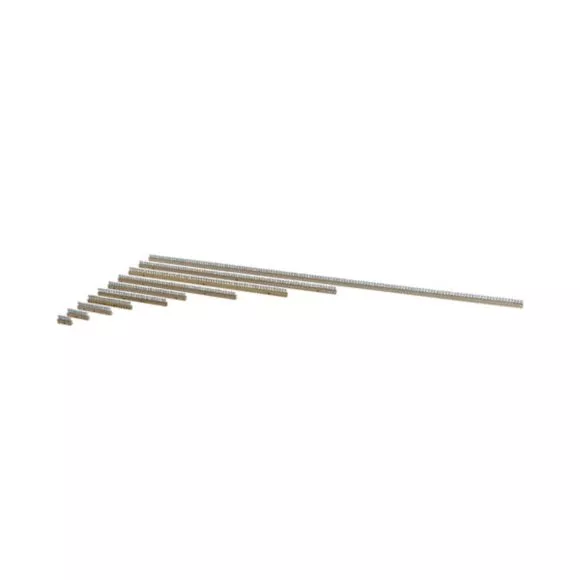

Brass terminal bar (63 A), if it is being used as a PE bar, directly installed in the distribution board, when used as a neutral conductor busbar, it needs to be mounted with KT-3/KT-5 terminal supports
Additional features:
Information | Value |
---|---|
Net weight: | 590 g |
ETIM class: | Main line branch terminal |
Number of poles: | 1 |
Nominal current: | 63 A |
Mounting method: | Screw |
Number of inputs: | 2 |
Number of outputs: | 140 |
Suitable for solid conductors: | yes |
Suitable for stranded conductors: | yes |
Suitable for fine strand conductors: | yes |
Suitable for fine strand conductors without cable end sleeve: | no |
Suitable for extra fine-strand conductors: | no |
Suitable for extra fine-strand conductors without cable end sleeve: | no |
Conductor cross section, input: | 1.5 - 16 mm² |
Conductor cross section, output: | 1.5 - 16 mm² |
Conductor cross section, input AWG: | 0 - 0 mm² |
Conductor cross section, output AWG: | 0 - 0 mm² |
Contact safe: | no |
Height: | 10 mm |
Width: | 8 mm |
Depth: | 995 mm |
Connection type: | Screwing |
