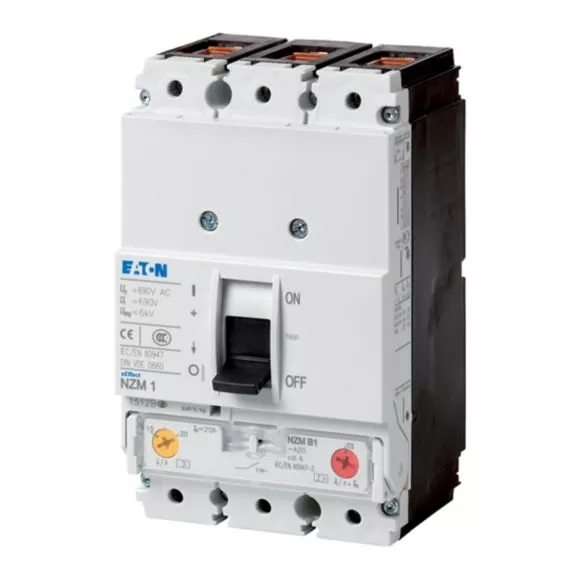

NZMC1-A80 Wyłącznik mocy 3-bieg. 80A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 271395 |
GTIN(EAN) | 4015082713959 |
Price unit | piece |
Catalog price | 1 801,26 zł (1 464,44 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki serii NZM..-A swoimi zaledwie czterema kompaktowymi wielkościami sprawdzają się we wszystkich zastosowaniach na rynku IEC. Montaż jest zawsze elastyczny za pomocą modułowych grup funkcyjnych. Z termomagnetycznym wyzwalaczem do ochrony instalacji i kabli.
Additional features:
Information | Value |
---|---|
Net weight: | 1,06 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 80 A |
Rated voltage: | 690 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 36 kA |
Overload release current setting: | 63 - 80 A |
Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
Adjustment range undelayed short-circuit release: | 480 - 800 A |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Frame clamp |
Device construction: | Built-in device fixed built-in technique |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | yes |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With switched-off indicator: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Front side |
Type of control element: | Rocker lever |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | no |
Degree of protection (IP): | IP20 |
