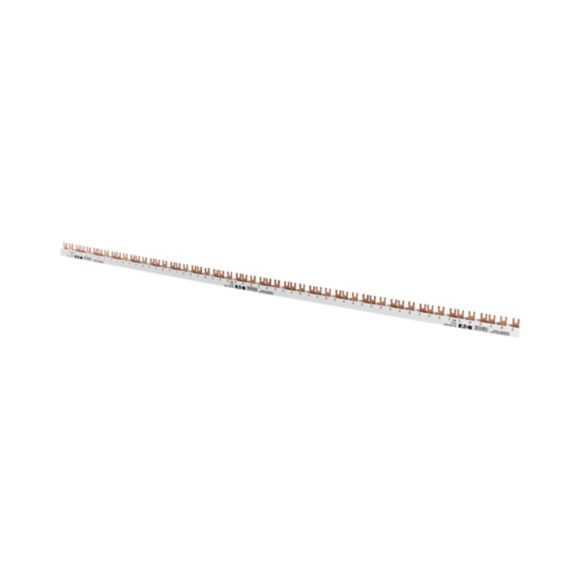

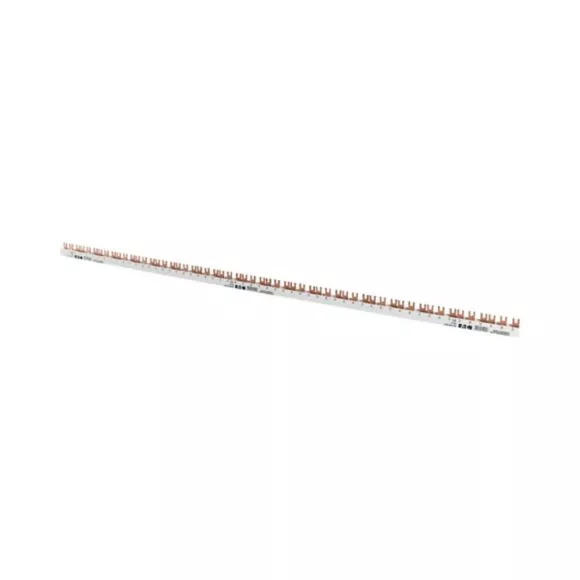

Z-GV-16/3P+HS Szyna do łączenia aparatury modułowej
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 271065 |
GTIN(EAN) | 4015082710651 |
Price unit | piece |
Catalog price | 880,19 zł (715,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Block busbar for PLS.CLS.PKN.PFIM, PFHM, Z-SLS/D01 (also with auxiliary contact), cover caps are not included as standard
Additional features:
Information | Value |
---|---|
Net weight: | 600 g |
ETIM class: | Phase busbar |
Number of phases: | 3 |
Number of poles: | 3 |
Suitable for number of devices: | 12 |
Module width: | 27 mm |
Cross section: | 16 mm² |
Length: | 30 mm |
Width in number of modular spacings: | 3 |
Rated permanent current Iu: | 80 A |
Type of electric connection: | Fork |
Insulated: | yes |
Rated surge voltage: | 0 kV |
Conditioned rated short-circuit current Iq: | 0 kA |
Max. rated operation voltage Ue: | 415 V |
Rated short-time withstand current lcw: | 0 kA |
Suitable for devices with N-conductor: | no |
Suitable for devices with auxiliary switch: | yes |
Colour: | Other |
