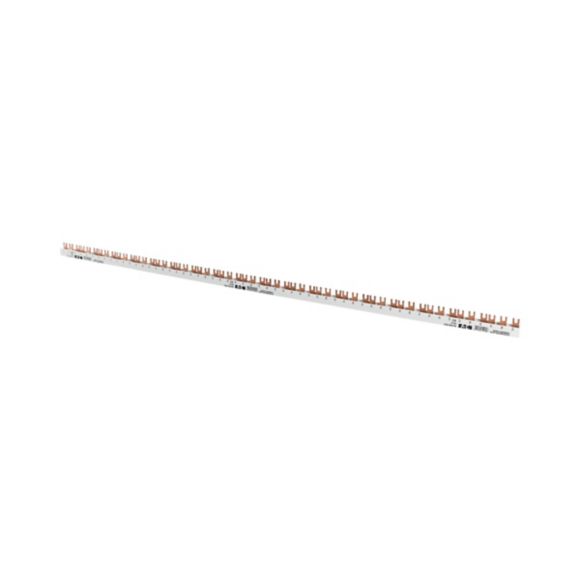

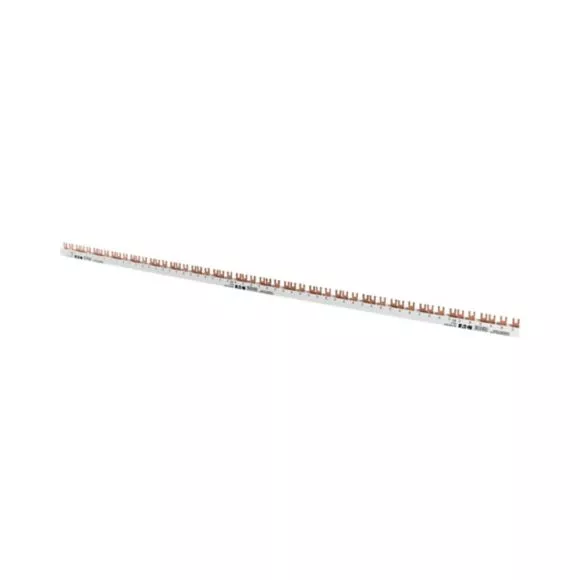

Z-GV-16/1P+N-2TE Szyna do łączenia aparatury modułowej
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 271063 |
| GTIN(EAN) | 4015082710637 |
| Price unit | piece |
| Catalog price | 416,60 zł (338,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Block busbar for PLS.CLS.PKN.PFIM, PFHM, Z-SLS/D01 (also with auxiliary contact), cover caps are not included as standard
Additional features:
| Information | Value |
|---|---|
| Net weight: | 470 g |
| ETIM class: | Phase busbar |
| Number of phases: | 2 |
| Number of poles: | 1 |
| Suitable for number of devices: | 0 |
| Module width: | 0 mm |
| Cross section: | 16 mm² |
| Length: | 30 mm |
| Width in number of modular spacings: | 2 |
| Rated permanent current Iu: | 80 A |
| Type of electric connection: | Fork |
| Insulated: | yes |
| Rated surge voltage: | 0 kV |
| Conditioned rated short-circuit current Iq: | 0 kA |
| Max. rated operation voltage Ue: | 415 V |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for devices with N-conductor: | yes |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Other |
