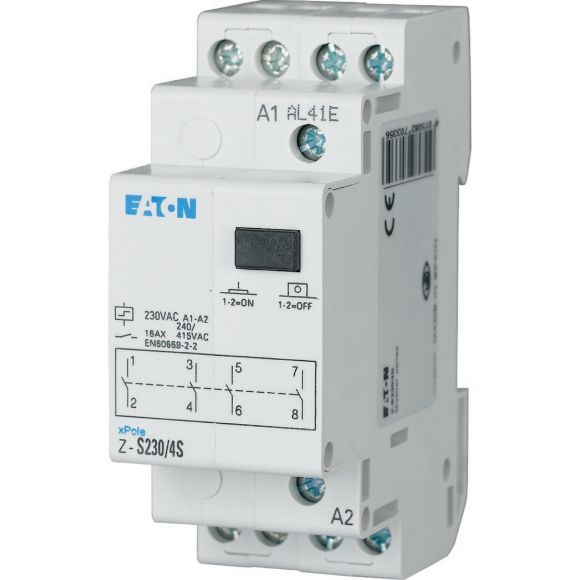

Z-S230/4S Przekaźnik impulsowy
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 270335 |
GTIN(EAN) | 4015082703356 |
Price unit | piece |
Catalog price | 591,63 zł (481,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik impulsowy, napięcie sterujące 230V AC 50Hz, funkcja: 4 zestyków zwiernych, prąd znamionowy przy 250V AC według IEC/EN 60669-2-2: 16A, wymiary montażowe zatyczki 45mm, szerokość montażowa 2JC (35mm), wyłącznik naprądowy, przekrój zacisku 0,5-10 mm² jedno- i wielożyłowego / 0,5-6 mm² drobnożyłowego z tuleją kończącą
Additional features:
Information | Value |
---|---|
Net weight: | 263 g |
ETIM class: | Latching relay |
Function: | Mechanical switch |
Mounting method: | DIN rail |
Width in number of modular spacings: | 2 |
Built-in depth: | 60 mm |
Number of contacts as normally open contact: | 4 |
Number of contacts as normally closed contact: | 0 |
Number of contacts as change-over contact: | 0 |
Control voltage 1: | 230 - 230 V |
Type of control voltage 1: | AC |
Frequency control voltage 1: | 50 - 50 Hz |
Control voltage 2: | 0 - 0 V |
Type of control voltage 2: | AC |
Frequency control voltage 2: | 0 - 0 Hz |
Rated switch current: | 16 A |
Supply voltage: | 240 - 415 V |
Voltage type (supply voltage): | AC |
Max. incandescent lamp load: | 0 W |
Max. load fluorescent lamp: | 0 VA |
Max. load fluorescent lamp (Duo circuit): | 0 VA |
Max. load fluorescent lamp (parallel compensated): | 0 VA |
Max. switching current (cos phi = 0.6): | 0 A |
Suitable for manual operation: | yes |
