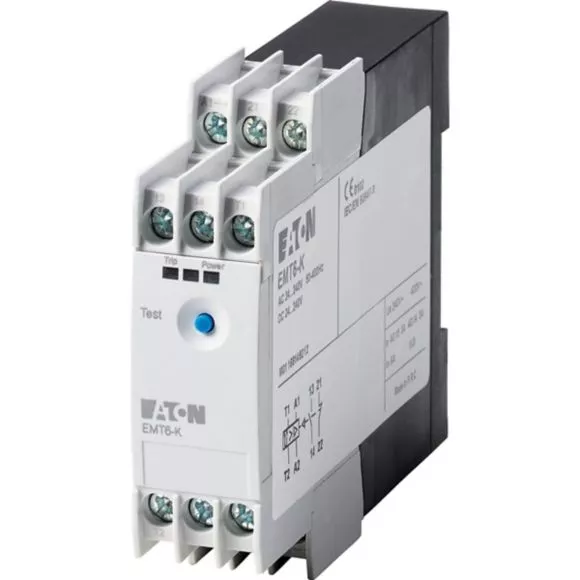

EMT6-K Termisitorowe zabezpieczenie maszyn
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 269470 |
| GTIN(EAN) | 4015082694708 |
| Price unit | piece |
| Catalog price | 897,29 zł (729,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Termistorowe zabezpieczenie maszyn, wskaźnik diodowy sieci i błędu, pomiarowe napięcie zasilania sterującego 24-240V 50-60Hz, 24-240V DC bez blokady ponownego załączenia, wyzwolenie przy zwarciu w przewodzie czujnika, mocowanie na zaciski
Additional features:
| Information | Value |
|---|---|
| Net weight: | 130 g |
| Country of origin | Chiny |
| ETIM class: | Temperature monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Number of measuring circuits: | 1 |
| Error registration possible: | no |
| External reset possible: | no |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Temperature measuring range: | 0 - 0 °C |
| Resistance measuring range: | 750 - 12000 Ω |
| Width: | 23 mm |
| Height: | 83 mm |
| Depth: | 103 mm |
| Voltage type (supply voltage): | AC/DC |
| Supply voltage AC 50 Hz: | 24 - 240 V |
| Supply voltage AC 60 Hz: | 24 - 240 V |
| Supply voltage DC: | 24 - 240 V |
| Connection type auxiliary circuit: | Screw connection |
| Voltage type (operating voltage): | AC/DC |
| Operating voltage AC 50 Hz: | 24 - 240 V |
| Operating voltage AC 60 Hz: | 24 - 240 V |
| Operating voltage DC: | 24 - 240 V |
| Rated switch current: | 6 A |
