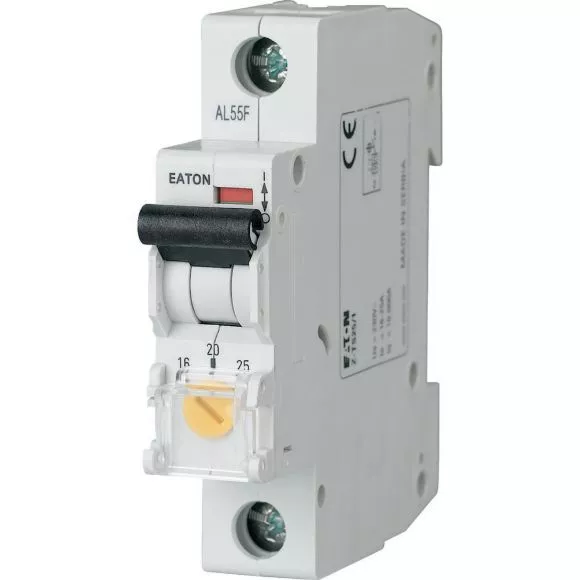

Z-TS63/1 Wyłącznik taryfowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 266856 |
| GTIN(EAN) | 4015082668563 |
| Price unit | piece |
| Catalog price | 267,89 zł (217,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Switching device for voluntary or tariff-based current limiting for consumer systems, design conforms to EN/IEC 60898-1, EN/IEC 60947, utility company-approved, easy for power customers to switch back on, set screw underneath sealable cover cap
Additional features:
| Information | Value |
|---|---|
| Net weight: | 122 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 50 - 63 A |
| Adjustment range undelayed short-circuit release: | 50 - 63 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | no |
| Switch off technique: | Magnetic |
| Rated operating voltage: | 400 - 400 V |
| Rated permanent current Iu: | 0 A |
| Rated operation power at AC-3, 230 V: | 0 kW |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Device construction: | Complete device in housing |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 1 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 0 kA |
| Degree of protection (IP): | IP20 |
| Height: | 75 mm |
| Width: | 18 mm |
| Depth: | 80 mm |
