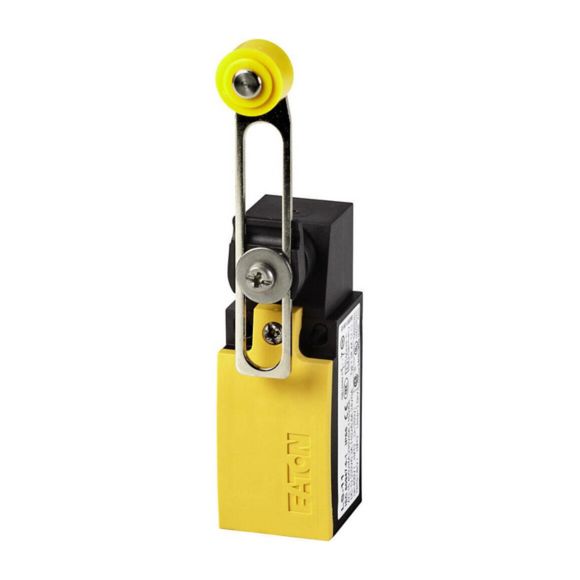

LSM-11/RLA Dźwignia o regulowanej długości z rolką
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 266148 |
| GTIN(EAN) | 4015082661489 |
| Price unit | piece |
| Catalog price | 466,79 zł (379,50 zł + 23% VAT) |
| Sale price | from 130,69 zł / szt. (106,25 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
IEC EN 60947-5-1, wysoki stopień ochrony IP 66, urządzenia na wszystkich rynkach, system modułowy, zastosowanie także w obwodach prądowych służących jako zabezpieczenie poprzez wymuszone uruchamianie i zestyki z rozwarciem wymuszonym. Łatwy montaż, końcówki napędowe można nakładać we wszystkich 4 kierunkach, mocując je następnie łatwo i szybko za pomocą zamknięcia bagnetowego. Wykorzystano w nich mocowania typu Cage-Clamp lub zaciski śrubowe i są oferowane z obudową w wersji metalowej i plastikowej, przystosowany do elektroniki według IEC/EN 61131-2
Additional features:
| Information | Value |
|---|---|
| Net weight: | 212 g |
| Country of origin | Niemcy |
| ETIM class: | End switch |
| Width sensor: | 31 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 61 mm |
| Length of sensor: | 33.5 mm |
| Rated operation current Ie at AC-15, 24 V: | 6 A |
| Rated operation current Ie at AC-15, 125 V: | 6 A |
| Rated operation current Ie at AC-15, 230 V: | 6 A |
| Rated operation current Ie at DC-13, 24 V: | 3 A |
| Rated operation current Ie at DC-13, 125 V: | 0.8 A |
| Rated operation current Ie at DC-13, 230 V: | 0.3 A |
| Switching function: | Slow-action switch |
| Forced opening: | yes |
| Number of safety auxiliary contacts: | 0 |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Metal |
| Coating housing: | Other |
| Type of control element: | Adjustable rotary lever |
| Alignment of the control element: | Roller cam crossed |
| Type of electric connection: | Cable entry metrical |
| Suitable for safety functions: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP66/IP67 |
| Degree of protection (NEMA): | Other |
| Switching function latching: | no |
| Output electronic: | no |
| With status indication: | no |
