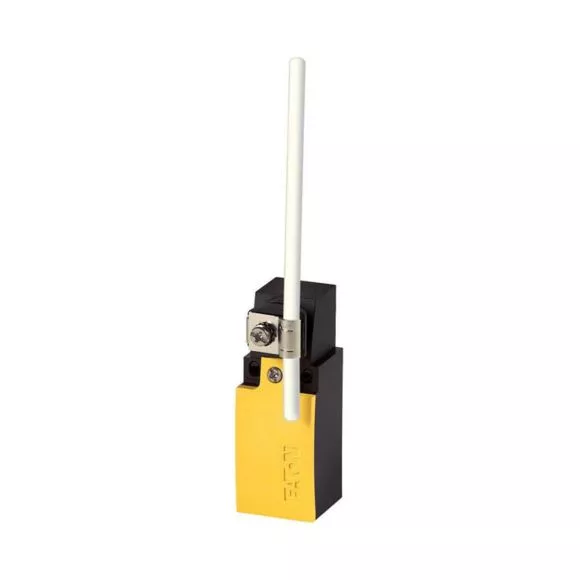

LSM-11S/RR Dźwignia prętowa,napęd migowy
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 266141 |
GTIN(EAN) | 4015082661410 |
Price unit | piece |
Catalog price | 484,87 zł (394,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
IEC EN 60947-5-1, wysoki stopień ochrony IP 66, urządzenia na wszystkich rynkach, system modułowy, zastosowanie także w obwodach prądowych służących jako zabezpieczenie poprzez wymuszone uruchamianie i zestyki z rozwarciem wymuszonym. Łatwy montaż, końcówki napędowe można nakładać we wszystkich 4 kierunkach, mocując je następnie łatwo i szybko za pomocą zamknięcia bagnetowego. Wykorzystano w nich mocowania typu Cage-Clamp lub zaciski śrubowe i są oferowane z obudową w wersji metalowej i plastikowej, przystosowany do elektroniki według IEC/EN 61131-2
Additional features:
Information | Value |
---|---|
Net weight: | 196 g |
Country of origin | Niemcy |
ETIM class: | End switch |
Width sensor: | 31 mm |
Diameter sensor: | 0 mm |
Height of sensor: | 61 mm |
Length of sensor: | 33.5 mm |
Rated operation current Ie at AC-15, 24 V: | 6 A |
Rated operation current Ie at AC-15, 125 V: | 6 A |
Rated operation current Ie at AC-15, 230 V: | 6 A |
Rated operation current Ie at DC-13, 24 V: | 3 A |
Rated operation current Ie at DC-13, 125 V: | 0.8 A |
Rated operation current Ie at DC-13, 230 V: | 0.3 A |
Switching function: | Quick-break switch |
Forced opening: | yes |
Number of safety auxiliary contacts: | 0 |
Number of contacts as normally closed contact: | 1 |
Number of contacts as normally open contact: | 1 |
Number of contacts as change-over contact: | 0 |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cuboid |
Housing material: | Metal |
Coating housing: | Other |
Type of control element: | Actuating rod |
Alignment of the control element: | Roller cam crossed |
Type of electric connection: | Cable entry metrical |
Suitable for safety functions: | yes |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | -25 - 70 °C |
Degree of protection (IP): | IP66/IP67 |
Degree of protection (NEMA): | Other |
Switching function latching: | no |
Output electronic: | no |
With status indication: | no |
