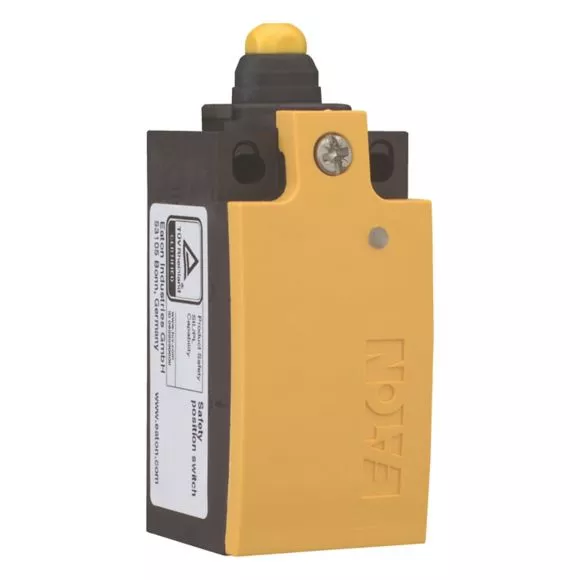

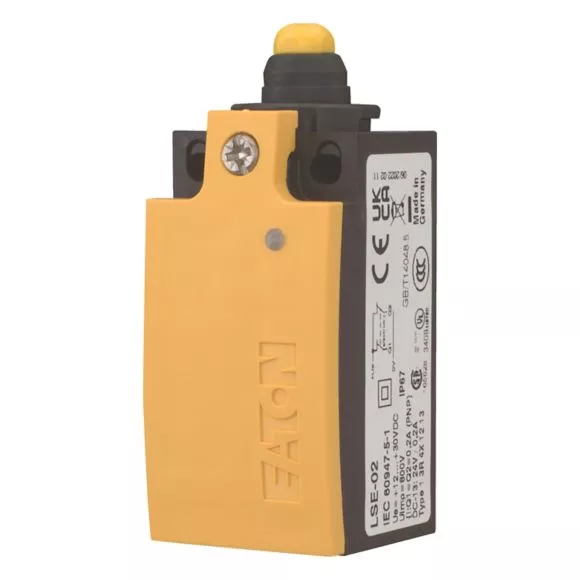

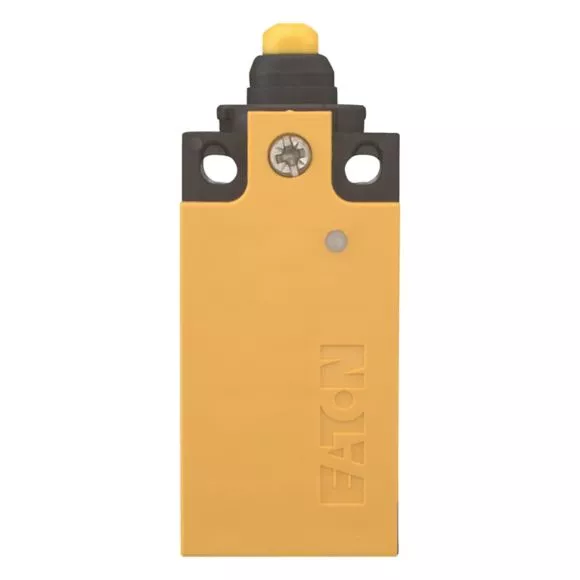

LSE-02 Łącznik krańcowy LS nastaw.elektroniczni
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 266122 |
| GTIN(EAN) | 4015082661229 |
| Price unit | piece |
| Catalog price | 614,51 zł (499,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
IEC EN 60947-5-1, wysoki stopień ochrony IP 66, system modułowy, zastosowanie także w obwodach prądowych służących jako zabezpieczenie, zmiennie ustawiany punkt łączenia, dokładnie określony i powtarzalny, szybkie i bezoporowe wyjścia przełączające PNP pozwalają uzyskiwać szybkie częstotliwości przełączania, certyfikat wydany przez TÜV Rheinland
Additional features:
| Information | Value |
|---|---|
| Net weight: | 48 g |
| Country of origin | Niemcy |
| ETIM class: | End switch |
| Width sensor: | 31 mm |
| Diameter sensor: | 0 mm |
| Height of sensor: | 61 mm |
| Length of sensor: | 33.5 mm |
| Rated operation current Ie at AC-15, 24 V: | 0 A |
| Rated operation current Ie at AC-15, 125 V: | 0 A |
| Rated operation current Ie at AC-15, 230 V: | 0 A |
| Rated operation current Ie at DC-13, 24 V: | 0.2 A |
| Rated operation current Ie at DC-13, 125 V: | 0 A |
| Rated operation current Ie at DC-13, 230 V: | 0 A |
| Switching function: | Slow-action switch |
| Output electronic: | yes |
| Number of safety auxiliary contacts: | 0 |
| Number of contacts as normally closed contact: | 2 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Plastic |
| Coating housing: | Other |
| Type of control element: | Plunger |
| Alignment of the control element: | Roller cam straight |
| Type of electric connection: | Cable entry metrical |
| With status indication: | yes |
| Suitable for safety functions: | yes |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP66/IP67 |
| Degree of protection (NEMA): | Other |
| Switching function latching: | no |
| Forced opening: | no |
