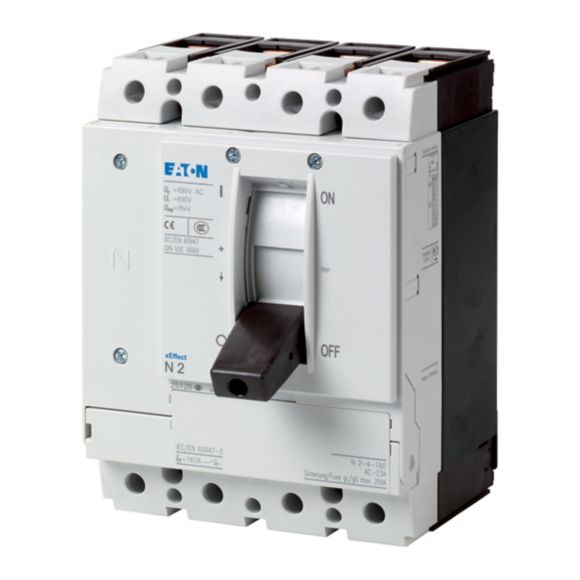

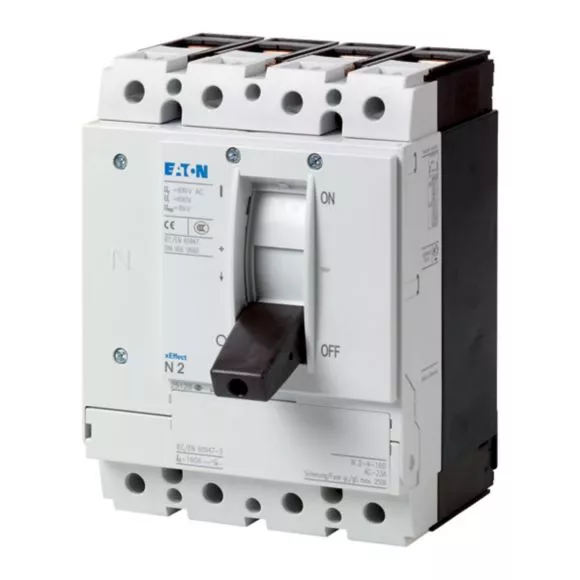

PN2-4-200 Rozłącznik mocy 4-bieg. 200A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 266012 |
| GTIN(EAN) | 4015082660123 |
| Price unit | piece |
| Catalog price | 3 396,77 zł (2 761,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłączniki PN..-.. mają cechy odłączników także do uziemionych sieci IT. Akcesoria takie jak np. zestawu połączeniowe, zaciski i uchwyty obrotowe sprzęgła drzwi pozwalają na indywidualny montaż w różnych systemach rozdzielaczy. Typy PN nie nadają się do działania zdalnego. Wskazówki: cechy wyłączników głównych w tym wymuszenie zgodnie z normą IEC/EN 60204 i VDE 0113. Cechy odłączania zgodnie z normą IEC/EN 60947-3 i VDE 0660. Zabezpieczenie przed dotknięciem zgodnie z VDE 0160 część 100.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,419 kg |
| Country of origin | Rumunia |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | no |
| Version as emergency stop installation: | yes |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current at AC-23, 400 V: | 0 A |
| Rated permanent current at AC-21, 400 V: | 0 A |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Rated short-time withstand current lcw: | 3.5 kA |
| Rated operation power at AC-23, 400 V: | 110 kW |
| Switching power at 400 V: | 0 kW |
| Conditioned rated short-circuit current Iq: | 0 kA |
| Number of poles: | 4 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | yes |
| Suitable for intermediate mounting: | yes |
| Colour control element: | Black |
| Type of control element: | Rocker lever |
| Interlockable: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP20 |
| Degree of protection (NEMA): | Other |
| With pre-assembled cabling: | no |
| Width: | 140 mm |
| Height: | 185 mm |
| Depth: | 142 mm |
