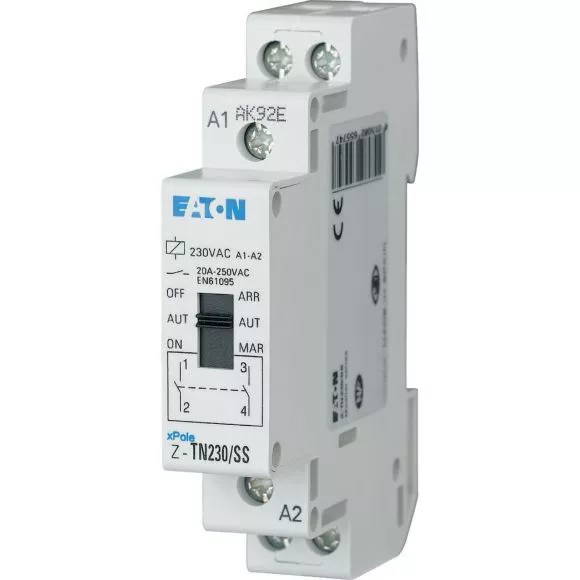

Z-TN230/SS Przekaź. instal. z fun. wyboru Z/AUT/W
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 265574 |
| GTIN(EAN) | 4015082655747 |
| Price unit | piece |
| Catalog price | 282,29 zł (229,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik instalacyjny z mechaniczną nastawą funkcji, czas trwania WŁ / AUTOM / WYŁ, napięcie sterujące 230V AC 50Hz, funkcja: 2 zestyków zwiernych, prąd znamionowy 20 A, 250V AC, wersje zgodne z IEC/EN 60947, wymiary montażowe zatyczki 45mm, szerokość montażowa 1JC (17,5mm), wyłącznik naprądowy, przekrój zacisku 0,5-10 mm² jedno- i wielożyłowego / 0,5-6 mm² drobnożyłowego z tuleją kończącą
Additional features:
| Information | Value |
|---|---|
| Net weight: | 136 g |
| ETIM class: | Installation relay |
| Function: | Mechanical |
| Mounting method: | DIN rail |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 60 mm |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Control voltage 1: | 230 - 230 V |
| Type of control voltage 1: | AC |
| Frequency control voltage 1: | 50 - 50 Hz |
| Control voltage 2: | 0 - 0 V |
| Type of control voltage 2: | AC/DC |
| Frequency control voltage 2: | 0 - 0 Hz |
| Rated current: | 20 A |
| Supply voltage: | 250 - 250 V |
| Voltage type (supply voltage): | AC |
| Max. incandescent lamp load: | 0 W |
| Max. load fluorescent lamp: | 0 VA |
| Max. load fluorescent lamp (Duo circuit): | 0 VA |
| Max. load fluorescent lamp (parallel compensated): | 0 VA |
| Max. switching current (cos phi = 0.6): | 0 A |
