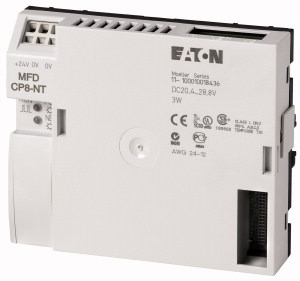

MFD-CP8-NT Moduł procesora CPU MFD,sieć NET,wew.800
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 265253 |
| GTIN(EAN) | 4015082652531 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 1 026,58 zł / szt. (834,62 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zasilacz i moduł CPU ze stopniem ochrony obudowy IP20, można łączyć z zespołem wskaźnikowym i obsługowym MFD-80-... i modułami wejść/wyjść, nadaje się do komunikacji, poprzez easyLink za pomocą odpowiednich modułów magistralowych można wykonać podłączenie do następujących systemów magistralowych: AS-Interface z modułem magistralowym EASY205-ASI / CANopen z modułem magistralowym EASY221-CO/ PROFIBUS-DP z modułem magistralowym EASY204-DP / DeviceNet z modułem magistralowym EASY222-DN, przez interfejs szeregowy można za pomocą Ethernet-Gateway EASY209-SE wykonać połączenie z siecią Ethernet, easyNet on board, pamięć programów i okien, mocowanie przyłącza z zaciskami sprężynowymi, możliwość dostarczenia z programem użytkownika
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Graphic panel |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 20.4 - 28.8 V |
| Voltage type (supply voltage): | DC |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces other: | 4 |
| With SW interfaces: | yes |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| Type of display: | Other |
| Colour display: | no |
| Number of colours of the display: | 0 |
| Number of grey-scales/blue-scales of display: | 0 |
| Screen diagonal: | 0 cal |
| Number of pixels, horizontal: | 0 |
| Number of pixels, vertical: | 0 |
| Useful project memory/user memory: | 32 kB |
| With numeric keyboard: | no |
| With alpha numeric keyboard: | no |
| Number of function buttons, programmable: | 9 |
| Number of buttons with LED: | 0 |
| Number of system buttons: | 0 |
| Touch technology: | None |
| With message indication: | yes |
| With message system (incl. buffer and confirmation): | no |
| Process value representation (output) possible: | yes |
| Process default value (input) possible: | yes |
| With recipes: | no |
| Number of password levels: | 1 |
| With printer output: | no |
| Number of online languages: | 256 |
| Additional software components, loadable: | yes |
| Degree of protection (IP), front side: | IP20 |
| Degree of protection (NEMA), front side: | 1 |
| Operating temperature: | 25 - 55 °C |
| Rail mounting possible: | yes |
| Wall mounting/direct mounting: | no |
| Suitable for safety functions: | no |
| Width of the front: | 0 mm |
| Height of the front: | 0 mm |
| Built-in depth: | 30 mm |
