ETR2-11 Elektroniczny przekaźnik czasowy 1W opóź
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 262684 |
GTIN(EAN) | 4015082626846 |
Price unit | piece |
Catalog price | 1 066,90 zł (867,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

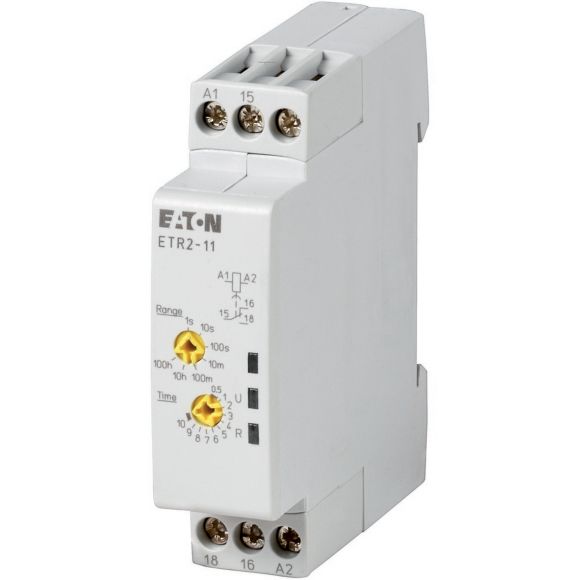

Elektroniczny przekaźnik czasowy ETR2, szerokość 17,5 mm, przedział czasu 0,05s-100h, 1 zestyków przełącznych o opóźnionym zadziałaniu
Additional features:
Information | Value |
---|---|
Net weight: | 51 g |
ETIM class: | Timer relay |
Type of electric connection: | Screw connection |
Function delay-on energization: | yes |
Function delay on de-energization: | no |
Function floating contact on energization: | no |
Function floating contact on de-energization: | no |
Function star-delta: | no |
Function pulse shaping: | no |
Function flashing, starting with pause, fixed time: | no |
Function flashing, starting with pulse, fixed time: | no |
Clock function, starting with pause, variable: | no |
Clock function, starting with pulse, variable: | no |
Remote operation possible: | no |
Suitable as remote control: | no |
Pluggable on auxiliary contact block: | no |
Rated control supply voltage AC 50 Hz: | 24 - 240 V |
Rated control supply voltage AC 60 Hz: | 24 - 240 V |
Rated control supply voltage DC: | 24 - 48 V |
Voltage type for actuating: | AC/DC |
Nominal current: | 3 A |
Time range: | 0.05 - 360000 s |
Number of outputs, undelayed, normally closed contact: | 0 |
Number of outputs, undelayed, normally open contact: | 0 |
Number of outputs, undelayed, change-over contact: | 0 |
Number of outputs, delayed, normally closed contact: | 0 |
Number of outputs, delayed, normally open contact: | 0 |
Number of outputs, delayed, change-over contact: | 1 |
Outputs, reversible delayed/undelayed: | no |
With semiconductor output: | no |
Suitable for DIN rail (top hat rail) mounting: | yes |
Width: | 17.5 mm |
Height: | 70 mm |
Depth: | 63 mm |
