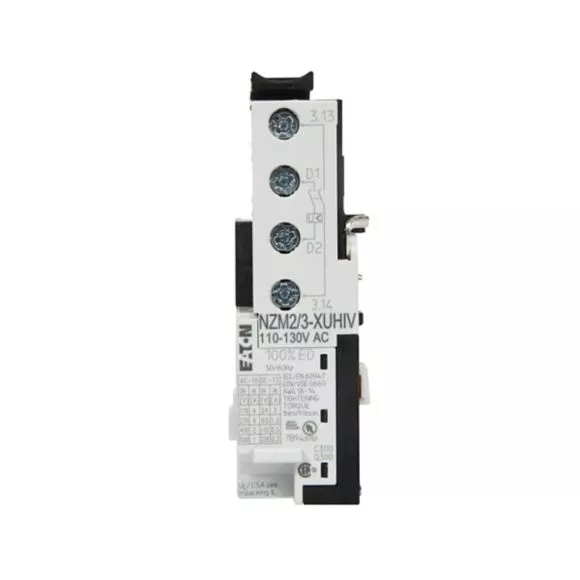

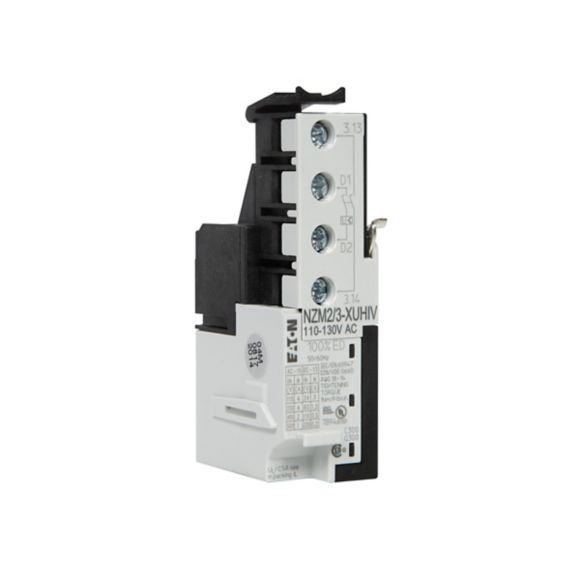

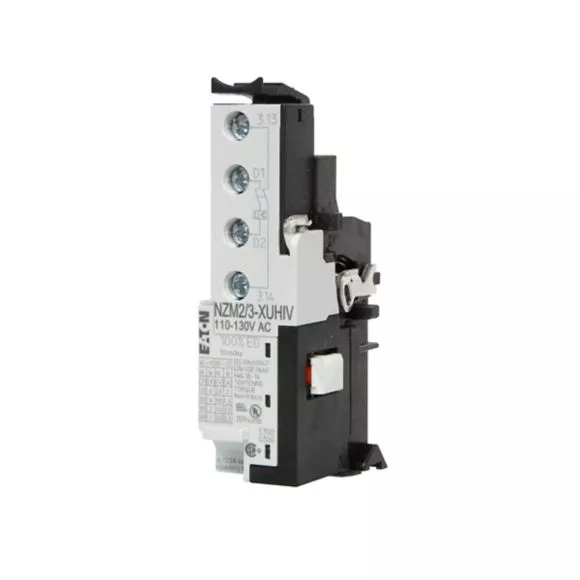

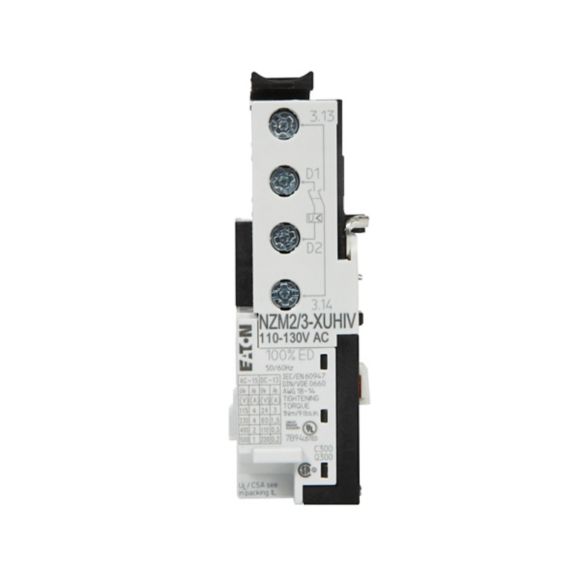

NZM2/3-XUHIV480-525AC Wyzwalacz zanikowy z 2 VHI do NZM2/3
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 259598 |
| GTIN(EAN) | 4015082595982 |
| Price unit | piece |
| Catalog price | 1 231,91 zł (1 001,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: for interlocking and load-shedding circuits, as well as for early-make of the undervoltage release in main-switch applications. For use with Emergency-Stop devices in conjunction with emergency-stop button. when the shunt release is energized, accidental contact with the main contacts of the switch during attempts to switch on is safely prevented . Early make of auxiliary contacts on switching on and off (manual operation): approx. 20ms. Undervoltage releases cannot be installed simultaneously with NZM..-XHIV.. early-make auxiliary contact or NZM..-XA.. shunt release. Cannot be used in conjunction with NZM...-XR... remote operator. Can be used for: NZM2(-4), N(N/O)2(-4), NZM3(-4), N(N/O)3(-4)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 74 g |
| ETIM class: | Under voltage coil |
| Rated control supply voltage AC 50 Hz: | 480 - 525 V |
| Rated control supply voltage AC 60 Hz: | 480 - 525 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Type of electric connection: | Screw connection |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Delayed: | no |
| Suitable for power circuit breaker: | no |
| Suitable for off-load switch: | yes |
| Suitable for motor safety switch: | no |
| Suitable for overload relay: | no |
