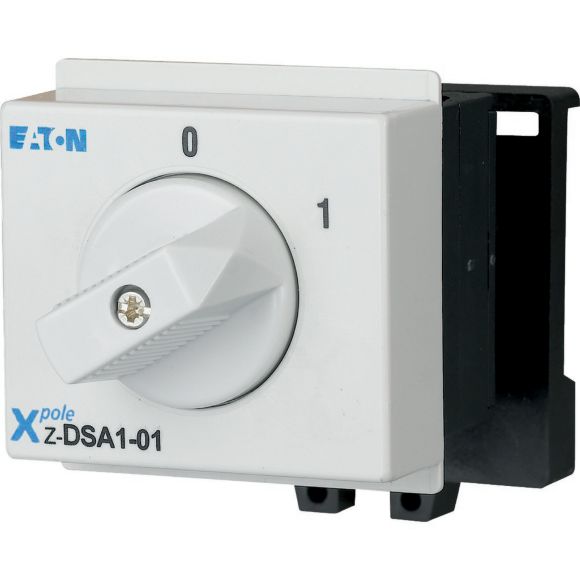

Z-DSA1-01 Przełącznik obrotowy 1bieg.zał. 0-1
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248868 |
| GTIN(EAN) | 4015082488680 |
| Price unit | piece |
| Catalog price | 487,94 zł (396,70 zł + 23% VAT) |
| Sale price | from 83,80 zł (68,13 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as zcam switchesz) are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding. This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV
Additional features:
| Information | Value |
|---|---|
| Net weight: | 120 g |
| ETIM class: | Main switch for distribution board |
| Switching function: | Off switch |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Number of poles: | 1 |
| Rated current: | 20 A |
| Rated voltage: | 690 V |
| Min. rated voltage: | 440 V |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Voltage type: | AC |
| With signal lamp: | no |
| Colour calotte: | Other |
| Lamp type: | Other |
| Lamp socket: | Other |
| Max. lamp power: | 0 W |
| Width in number of modular spacings: | 3 |
| Built-in depth: | 60 mm |
| Degree of protection (IP): | IP20 |
| Imprint/indication: | Other |
| Forced segregation according to DIN VDE 0113: | no |
| Rated switching capacity: | 0.02 kA |
