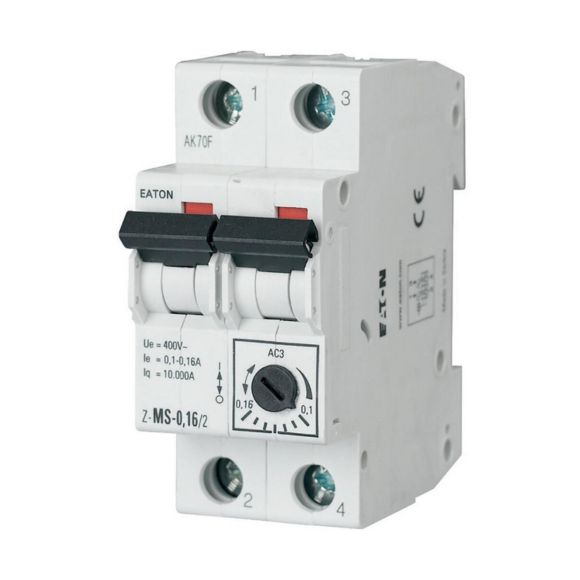

Z-MS-0,16/2 Wyłącznik silnikowy 2-biegunowy
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248389 |
| GTIN(EAN) | 4015082483890 |
| Price unit | piece |
| Catalog price | 370,72 zł (301,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Motor-protective circuit-breaker with thermal overload release and magnetic short-circuit release, for switching and protecting three-phase motors with outputs of up to 15 kW (380/400 V) or other loads with currents of up to 40 A, can also be used as a main switch, isolating characteristics to IEC/EN 60947, contact position display red/green
Additional features:
| Information | Value |
|---|---|
| Net weight: | 244 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 0.1 - 0.16 A |
| Adjustment range undelayed short-circuit release: | 1.3 - 1.7 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | no |
| Switch off technique: | Magnetic |
| Rated operating voltage: | 400 - 400 V |
| Rated permanent current Iu: | 0.16 A |
| Rated operation power at AC-3, 230 V: | 0 kW |
| Rated operation power at AC-3, 400 V: | 0.06 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Device construction: | Complete device in housing |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 2 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 10 kA |
| Degree of protection (IP): | IP20 |
| Height: | 75 mm |
| Width: | 36 mm |
| Depth: | 80 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:08 |
| Files to download: | |
| External links: |
