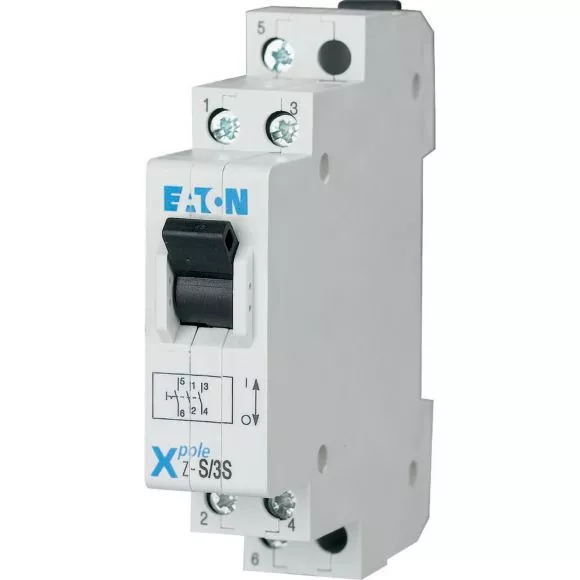

Z-S/SSOO PRZEŁĄCZNIK
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248337 |
| GTIN(EAN) | 4015082483371 |
| Price unit | piece |
| Catalog price | 225,58 zł (183,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik sterowniczy, funkcja: 2 zestyków zwiernych i 2 zestyków rozwiernych, znamionowy prąd pracy 16A, znamionowe napięcie pracy 230/400V AC, odporność na zwarcia 10kA, wymiary montażowe zatyczki 45mm, szerokość montażowa 1JC (17,5mm), wyłącznik naprądowy, przekrój zacisku 1-10 mm², wersja zgodna z IEC 60669, VDE 0632
Additional features:
| Information | Value |
|---|---|
| Net weight: | 86 g |
| ETIM class: | Main switch for distribution board |
| Switching function: | Control switch |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 2 |
| Number of contacts as change-over contact: | 0 |
| Number of poles: | 4 |
| Rated current: | 20 A |
| Rated voltage: | 240 V |
| Min. rated voltage: | 0 V |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Voltage type: | AC |
| With signal lamp: | no |
| Colour calotte: | Other |
| Lamp type: | Other |
| Lamp socket: | Other |
| Max. lamp power: | 0 W |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 80 mm |
| Degree of protection (IP): | IP40 |
| Imprint/indication: | Other |
| Forced segregation according to DIN VDE 0113: | no |
| Rated switching capacity: | 0.02 kA |
