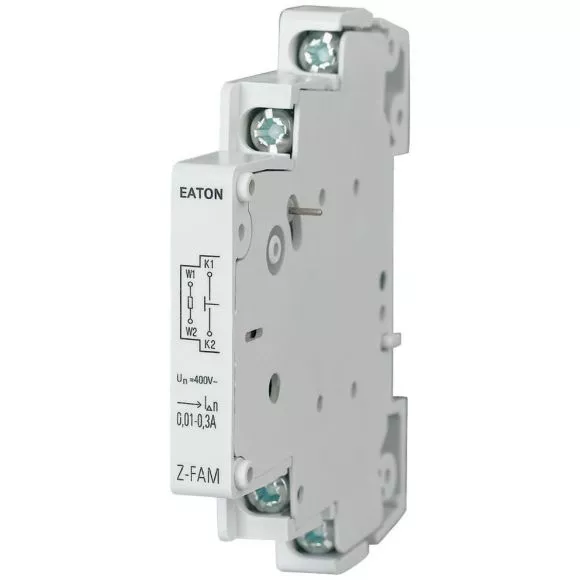

Z-FAM Moduł do zdalnego wyzwalania
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248293 |
| GTIN(EAN) | 4015082482930 |
| Price unit | piece |
| Catalog price | 327,30 zł (266,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
For remotely switching off residual current circuit-breakers, miniature circuit breaker/DI and RCBO combination switches, remote de-energization with one or more parallel dry contacts, e.g. button with max. 3 A rated operation current at 250 V, observe max. pushbutton voltage, remote trip testing with Z-FW remote testing module, can be retrofitted and wired to the appropriate residual current circuit-breaker terminals as specified in the circuit diagram, trip module for PFIM 0.5A please enquire, no dangerous accidental energization of consumer system during remote de-energization process, ensured with integrated K1-K2 contact breaker
Additional features:
| Information | Value |
|---|---|
| Net weight: | 50 g |
| ETIM class: | Auxiliary device for distribution board devices |
| Device fitting: | Earth leakage switch |
| Width in number of modular spacings: | 0.5 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Number of fault-signal switches: | 0 |
| Rated switch current: | 0 A |
| Rated voltage: | 400 V |
| With auto test for earth leakage function: | no |
| Suitable for max. number of poles main contact unit (total): | 0 |
| Suitable for max. current main contact unit: | 0 A |
