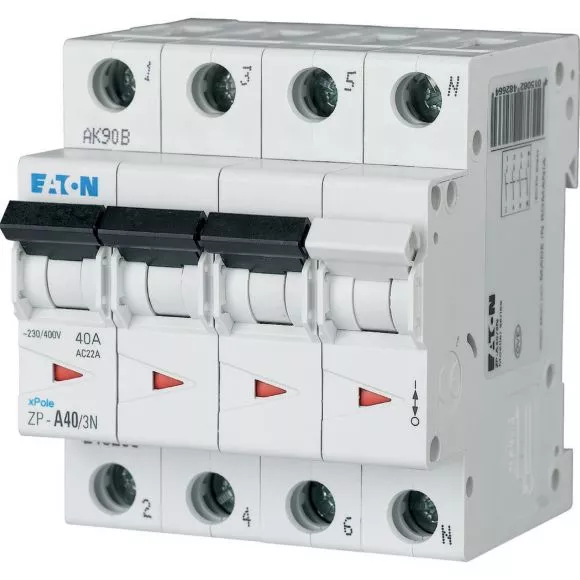

ZP-A40/3N Rozłącznik
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248266 |
| GTIN(EAN) | 4015082482664 |
| Price unit | piece |
| Catalog price | 526,69 zł (428,20 zł + 23% VAT) |
| Sale price | from 78,76 zł / szt. (64,03 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Off switch, type conforms to IEC/EN 60947-1, 1, -3, no. of poles: 1, 2, 3, 3N, amperages: 40 A, 63 A, accessories for protective switchgear for ZP-A can be used!
Additional features:
| Information | Value |
|---|---|
| Net weight: | 380 g |
| ETIM class: | Main switch for distribution board |
| Switching function: | Off switch |
| Number of contacts as normally open contact: | 3 |
| Number of contacts as normally closed contact: | 3 |
| Number of contacts as change-over contact: | 0 |
| Number of poles: | 4 |
| Rated current: | 40 A |
| Rated voltage: | 400 V |
| Min. rated voltage: | 230 V |
| Rated switching capacity: | 0 kA |
| Short-circuit breaking capacity (Icw): | 3 kA |
| Voltage type: | AC |
| With signal lamp: | no |
| Colour calotte: | Other |
| Lamp type: | Other |
| Lamp socket: | Other |
| Max. lamp power: | 0 W |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 60 mm |
| Degree of protection (IP): | IP40 |
| Imprint/indication: | Symbol "arrows" |
| Forced segregation according to DIN VDE 0113: | no |
