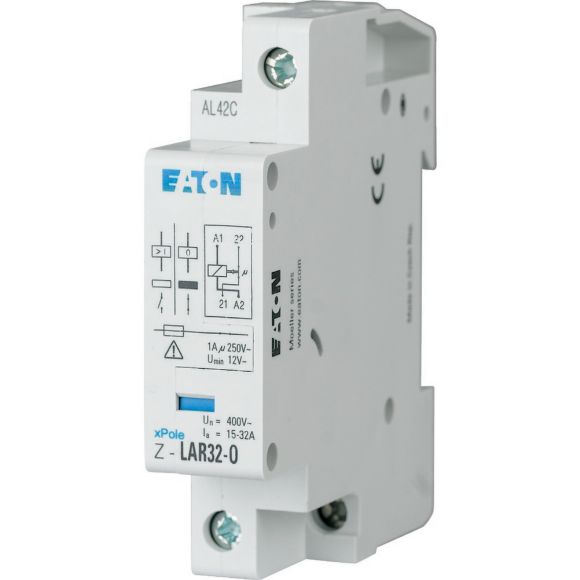

Z-LAR32-O Przekaźnik priorytet., 1rozw., 15-32 A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248258 |
| GTIN(EAN) | 4015082482589 |
| Price unit | piece |
| Catalog price | 596,92 zł (485,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik odciążający, zakres prądu roboczego 15-32A, wbudowany łącznik pomocniczy: 1 z. rozwiernych, znamionowe napięcie pracy 250V, znamionowe napięcie izolacji 440V, odporność na udar napięciowy 4 kV, wymiary montażowe zatyczki 45mm, szerokość montażowa 1JC (17,5mm), wyłącznik naprądowy, przekrój zacisku obwodu prądu głównego 2x10 mm², przekrój zacisku obwodu prądu pomocniczego 2x2,5 mm²
Additional features:
| Information | Value |
|---|---|
| Net weight: | 109 g |
| ETIM class: | Load shedding relay for distribution board |
| Rated voltage: | 250 V |
| Rated current Iu: | 15 - 32 A |
| Just-operate current: | 15 - 32 A |
| Max. time-delayed switch-off: | 0 ms |
| Max. continuous current: | 32 A |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Rated current (control contacts): | 1 A |
| Max. switching voltage (control contacts): | 250 V |
| Max. switching power (control contacts): | 7.36 VA |
| Electrical lifespan (control contacts): | 100000 c |
| Mechanical lifetime (control contacts): | 0 c |
| Max. electrical switching cycles: | 3600 c/h |
| Voltage type: | AC |
| Mounting method: | DIN rail |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 60 mm |
| Degree of protection (IP): | IP20 |
