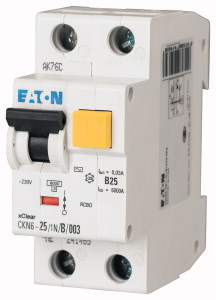

CKN6-25/1N/C/003-DE Wył.nadpr. z mod. różnic., 1+N-bieg.
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 241449 |
| GTIN(EAN) | 4015082414498 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 109,40 zł / szt. (88,94 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 2 |
| Number of protected poles: | 1 |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated current: | 25 A |
| Rated fault current: | 0.03 A |
| Leakage current type: | AC |
| Current limiting class: | 3 |
| Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Surge current capacity: | 0.25 kA |
| Voltage type: | AC |
| Frequency: | 50 Hz |
| Release characteristic: | C |
| Concurrently switching neutral conductor: | yes |
| With interlocking device: | no |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Ambient temperature during operating: | -25 - 40 °C |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69.5 mm |
| Anti-nuisance tripping version: | no |
| Degree of protection (IP): | IP20 |
| Connectable conductor cross section solid-core: | 1 - 25 mm² |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
Elektra o/Warszawa
Warszawa, ul. Bartycka 26 pawilon 34,
Warszawa, ul. Bartycka 26 pawilon 34,
Distance:
10 sztuk
109,40 zł/szt.
Buy online
Additional information:
| Information | Value |
|---|---|
| Updated: | 2022-12-04 14:34:21 |
| External links: |
