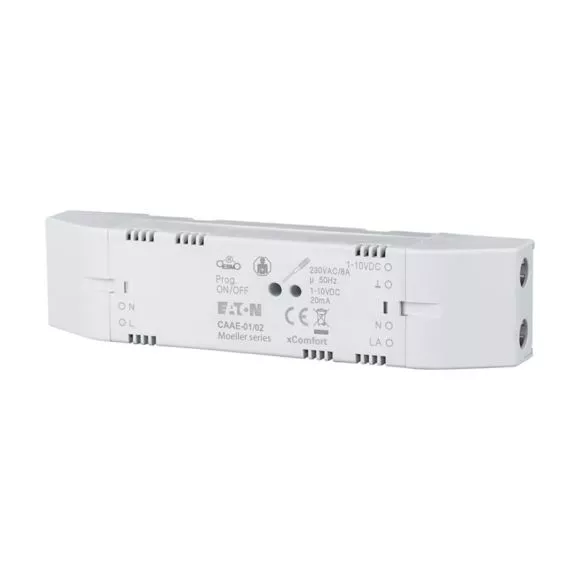

CAAE-01/02 Aktor analogowy 1-10VDC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 240698 |
| GTIN(EAN) | 4015082406981 |
| Price unit | piece |
| Catalog price | 2 173,41 zł (1 767,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Aktor analogowy odbiera, załącza przekaźnik i udostępnia napięcie wyjściowe 1-10VDC ściemniaczom i elektronicznym statecznikom (EVG) jarzeniówek. Zasilanie odbywa się poprzez sieć. Urządzenie montuje się w puszcze instalacyjnej, w tak zwanym ślepym pułapie lub bezpośrednio jarzeniówkach.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 166 g |
| ETIM class: | Analogue actuator for bus system |
| Bus system KNX: | no |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system radio frequent: | yes |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | xComfort |
| Mounting method: | Other |
| Width in number of modular spacings: | 2 |
| Model: | Base module |
| With LED indication: | yes |
| With bus connection: | yes |
| Number of outputs: | 1 |
| Output current: | 20 - 20 mA |
| Output voltage: | 1 - 10 V |
| Degree of protection (IP): | IP20 |
| Min. depth of built-in installation box: | 0 mm |
