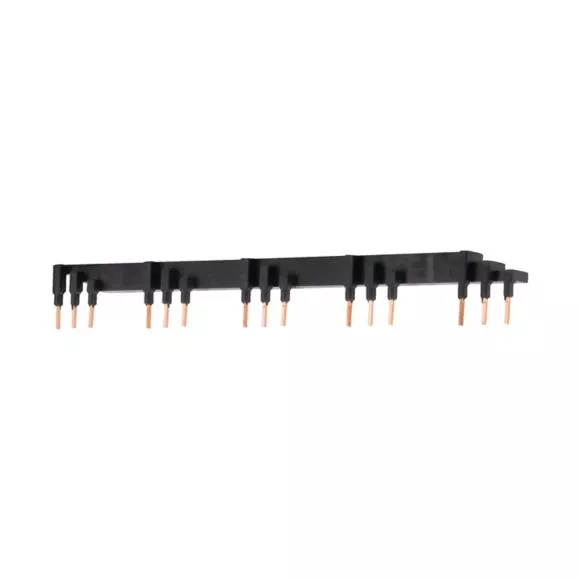

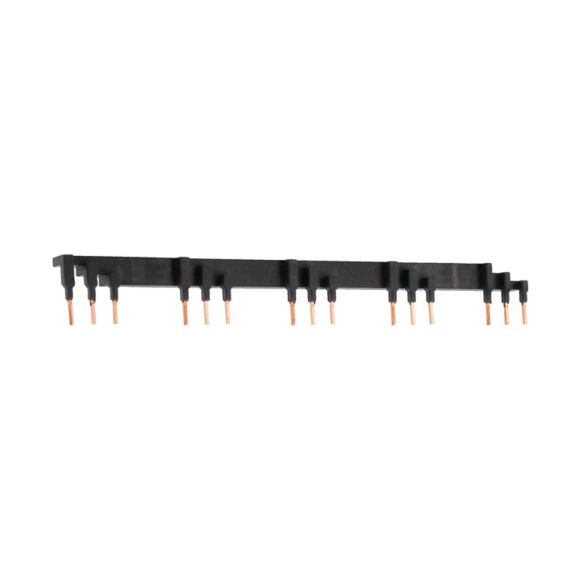

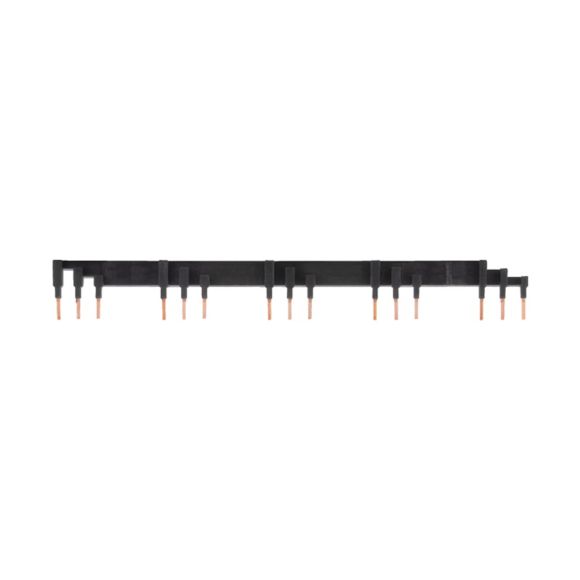

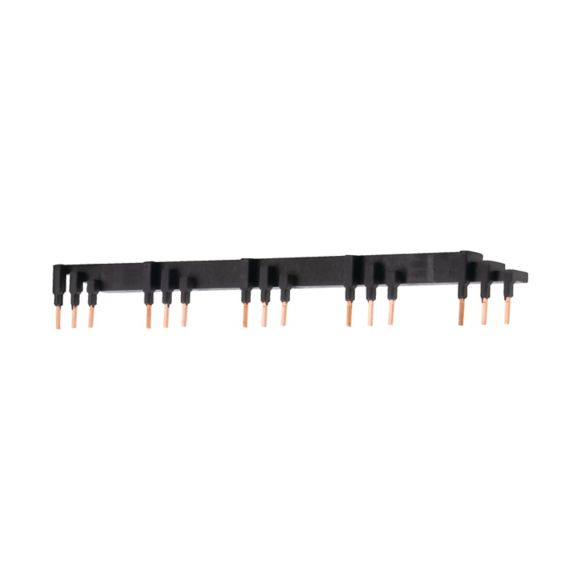

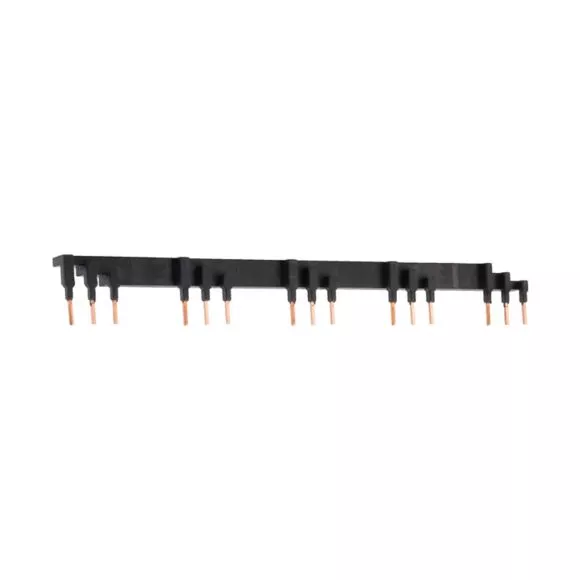

DILM12-XDSB0/5 Mostek trójfazowy dla DILM7...15
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 240086 |
| GTIN(EAN) | 4015082400866 |
| Price unit | piece |
| Catalog price | 140,59 zł (114,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Szybkie okablowanie poprzez bloki szyn prądu trójfazowego
Additional features:
| Information | Value |
|---|---|
| Net weight: | 70 g |
| ETIM class: | Phase busbar |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Suitable for number of devices: | 5 |
| Module width: | 45 mm |
| Cross section: | 0 mm² |
| Length: | 202 mm |
| Width in number of modular spacings: | 11.2 |
| Rated permanent current Iu: | 35 A |
| Type of electric connection: | Pin |
| Insulated: | yes |
| Rated surge voltage: | 0 kV |
| Conditioned rated short-circuit current Iq: | 0 kA |
| Max. rated operation voltage Ue: | 690 V |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Black |
