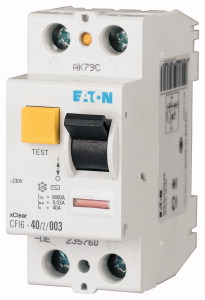

CFI6-40/2/003-DE Wyłącznik różnicowoprądowy 2-bieg

buy at the outlet / on sale
Buy / order

Information	Value
Supplier	EATON Electric Sp. z o.o. (MOELLER)
Symbol	235760
GTIN(EAN)	4015082357603
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price	from 67,12 zł / szt. (54,57 zł + 23 % VAT)

The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

Additional features:

Information	Value
ETIM class:	Residual current circuit breaker (RCCB)
Number of poles:	2
Rated voltage:	230 V
Rated current:	40 A
Rated fault current:	30 mA
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Mounting method:	DIN rail
Leakage current type:	AC
Selective protection:	no
Short-time delayed tripping:	no
Short-circuit breaking capacity (Icw):	6 kA
Surge current capacity:	0.25 kA
Frequency:	50 Hz
Additional equipment possible:	yes
With interlocking device:	yes
Degree of protection (IP):	IP20
Width in number of modular spacings:	2
Built-in depth:	69.5 mm
Ambient temperature during operating:	-25 - 60 °C
Pollution degree:	2
Connectable conductor cross section multi-wired:	1.5 - 16 mm²
Connectable conductor cross section solid-core:	1.5 - 35 mm²
