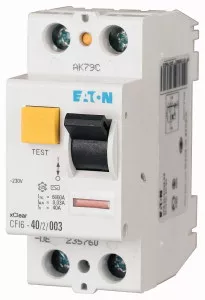

CFI6-25/2/003-DE Wyłącznik różnicowoprądowy 2-bieg
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 235753 |
| GTIN(EAN) | 4015082357535 |
| Price unit | piece |
| Product withdrawn | This product is not produced any more. It might still be available if some wholesaler has it in it's stock |
| Sale price | from 72,14 zł / szt. (58,65 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 2 |
| Rated voltage: | 230 V |
| Rated current: | 25 A |
| Rated fault current: | 30 mA |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | AC |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| Short-circuit breaking capacity (Icw): | 6 kA |
| Surge current capacity: | 0.25 kA |
| Frequency: | 50 Hz |
| Additional equipment possible: | yes |
| With interlocking device: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69.5 mm |
| Ambient temperature during operating: | -25 - 55 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section multi-wired: | 1.5 - 16 mm² |
| Connectable conductor cross section solid-core: | 1.5 - 35 mm² |
